NJ214-E-XL-TVP2+HJ214-E
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ FAG/ OEM
Bearing Number: NJ214-E-XL-TVP2+HJ214-E
Category: Cylindrical Roller Bearings
1

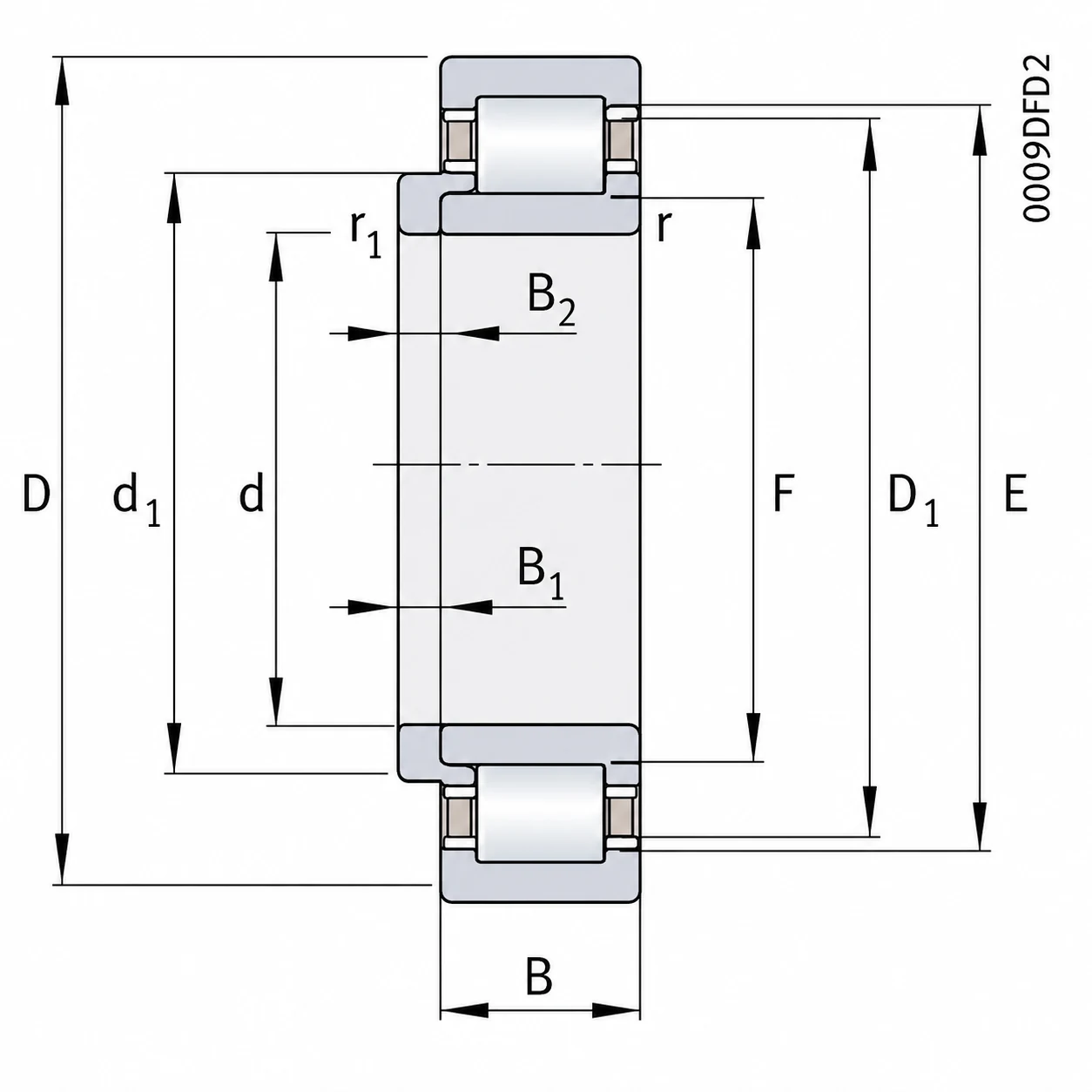

Weight and Dimensions
Bore (d): 70 mm
Outer (D): 125 mm
Width (B): 24 mm
Weight: 1.335 kg
Data from Schaeffler (medias)
Basic Dynamic Load Rating, Radial Cr: 141000 N
Basic Static Load Rating, Radial (C0r): 138000 N
Fatigue Load Limit, Radial (Cur): 24100 N
Limiting Speed (nG): 6800 rpm
Reference Speed (nϑr): 4650 rpm
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
FAG Cylindrical Bearing Types Model Code Guide
Product Description
The NJ214-E-XL-TVP2+HJ214-E FAG cylindrical roller bearing features an NJ design with cylindrical rollers, a solid polyamide PA66 cage, and an L-section ring. The E design provides increased load-carrying capacity, while X-life technology improves operating performance and service life. The lightweight TVP2 cage supports smooth and reliable operation, and the L-section ring enables the bearing to accommodate axial loads in both directions.
The NJ214-E-XL-TVP2+HJ214-E bearing is suitable for electric motors, industrial pumps, compressors, and compact drive systems. Its high radial load capacity and bidirectional axial location provide stable shaft support, making it a reliable choice for compact machinery and continuous operation.
