NJ2334-EX-TB-M1
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ FAG/ OEM
Bearing Number: NJ2334-EX-TB-M1
Category: Cylindrical Roller Bearings
1

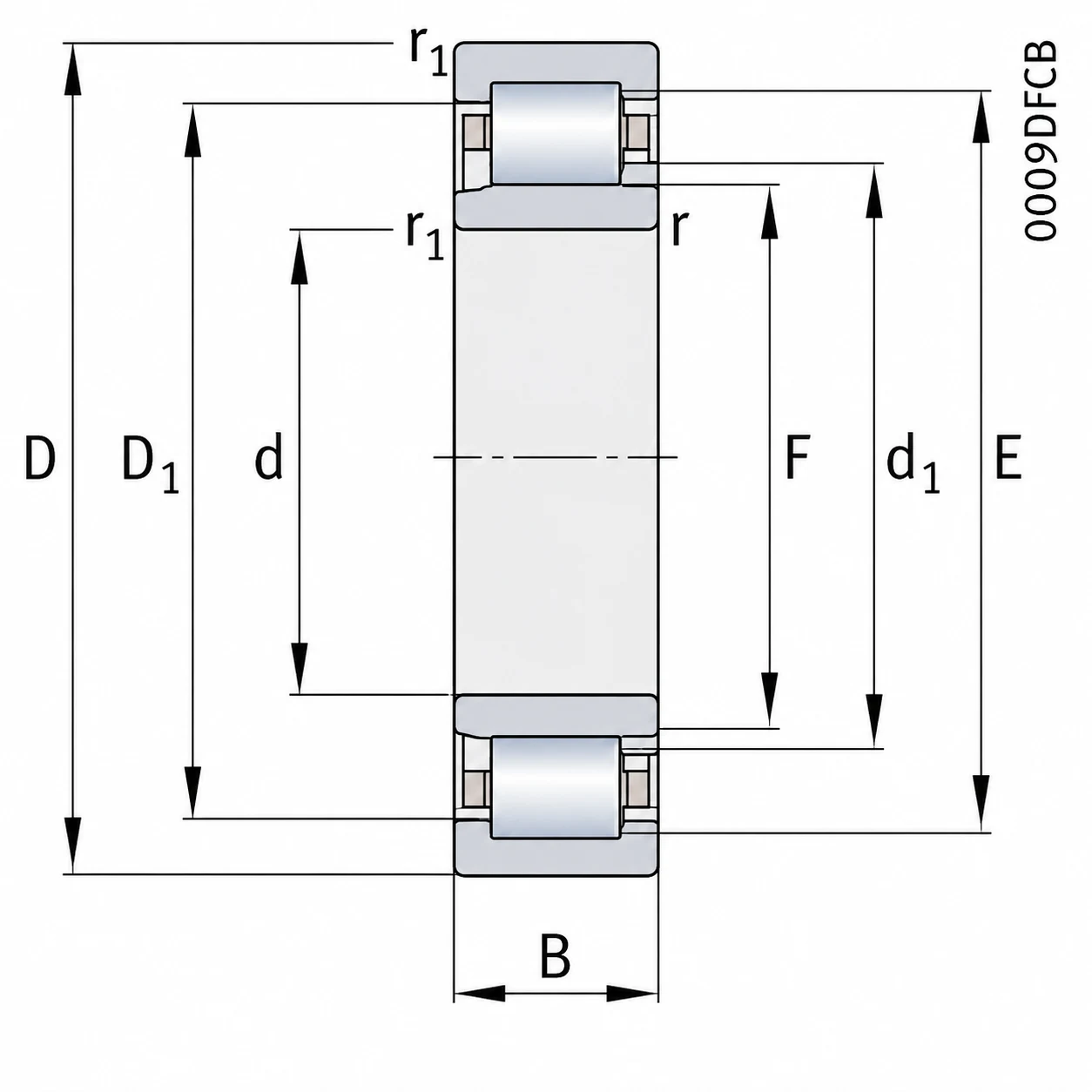

Weight and Dimensions
Bore (d): 170 mm
Outer (D): 360 mm
Width (B): 120 mm
Weight: 62.3 kg
Data from Schaeffler (medias)
Basic Dynamic Load Rating, Radial Cr: 1490000 N
Basic Static Load Rating, Radial (C0r): 2070000 N
Fatigue Load Limit, Radial (Cur): 227000 N
Limiting Speed (nG): 2800 rpm
Reference Speed (nϑr): 1210 rpm
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
FAG Cylindrical Bearing Types Model Code Guide
Product Description
The NJ2334-EX-TB-M1 FAG single row cylindrical roller bearing consists of an inner ring, outer ring, cylindrical rollers, and a brass cage. The EX design provides enhanced load-carrying performance, while the TB design optimizes roller-to-rib contact for higher axial load capacity and lower friction. The robust M1 brass cage provides reliable roller guidance under heavy loads.
The NJ2334-EX-TB-M1 bearing is suitable for mining machinery, crushers, heavy-duty reducers, and large industrial drive systems. Its enhanced load capacity, optimized rib contact, and robust cage design support reliable operation under heavy loads and demanding operating conditions.
