NJ332-E-M1+HJ332-E
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ FAG/ OEM
Bearing Number: NJ332-E-M1+HJ332-E
Category: Cylindrical Roller Bearings
1

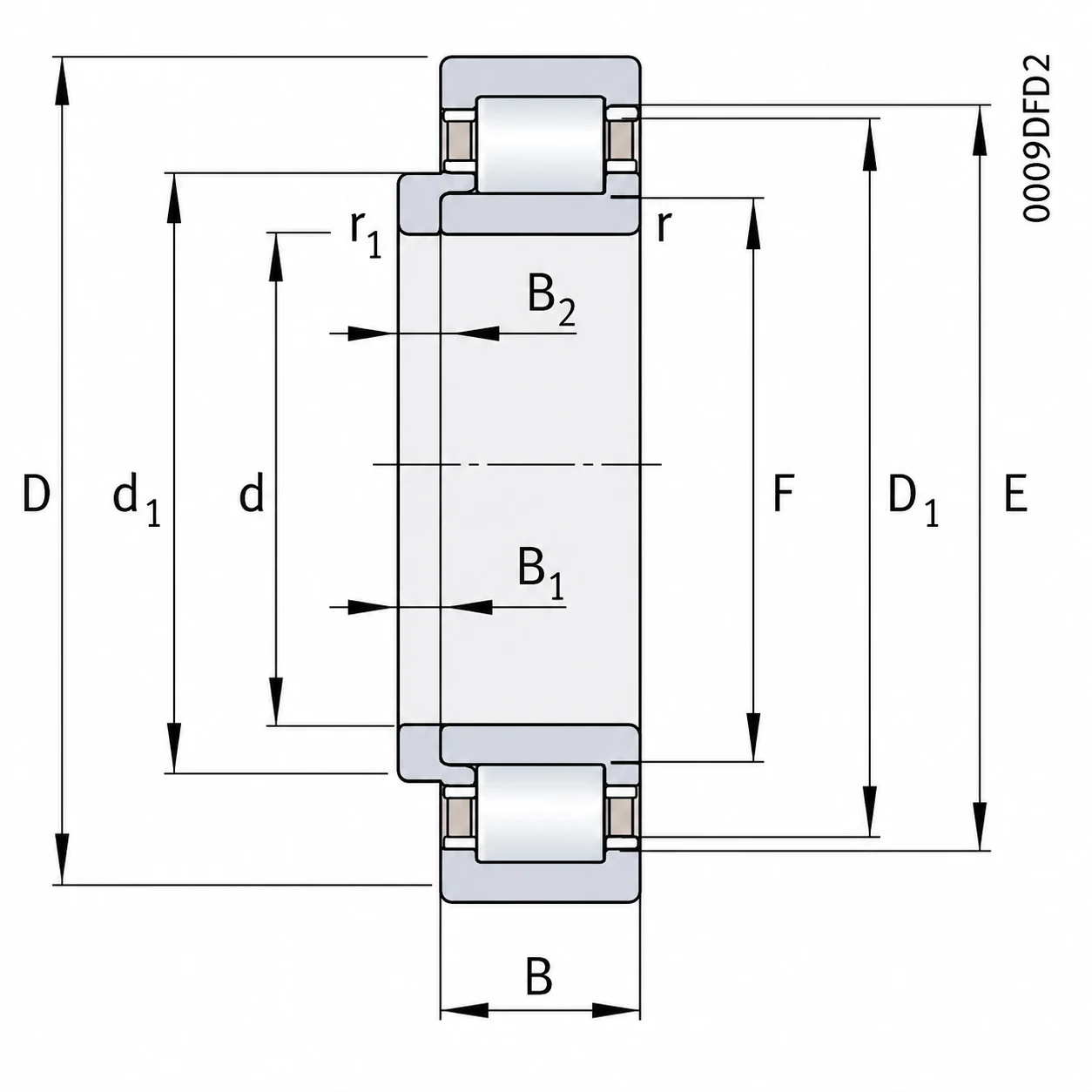

Weight and Dimensions
Bore (d): 160 mm
Outer (D): 340 mm
Width (B): 68 mm
Weight: 34.88 kg
Data from Schaeffler (medias)
Basic Dynamic Load Rating, Radial Cr: 860000 N
Basic Static Load Rating, Radial (C0r): 1060000 N
Fatigue Load Limit, Radial (Cur): 128000 N
Limiting Speed (nG): 3000 rpm
Reference Speed (nϑr): 1770 rpm
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
FAG Cylindrical Bearing Types Model Code Guide
Product Description
The NJ332-E-M1+HJ332-E FAG cylindrical roller bearing features an NJ design with cylindrical rollers, a brass cage, and an L-section ring. The E design provides increased load-carrying capacity, while the robust M1 brass cage supports stable operation under demanding loads. The L-section ring enables the bearing to accommodate axial loads in both directions.
The NJ332-E-M1+HJ332-E bearing is suitable for heavy industrial gearboxes, mining equipment, large drive systems, and material processing machinery. Its high radial load capacity and bidirectional axial location provide reliable shaft support, making it suitable for heavy loads and continuous operation.
