NJ334-E-TB-M1
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ FAG/ OEM
Bearing Number: NJ334-E-TB-M1
Category: Cylindrical Roller Bearings
1

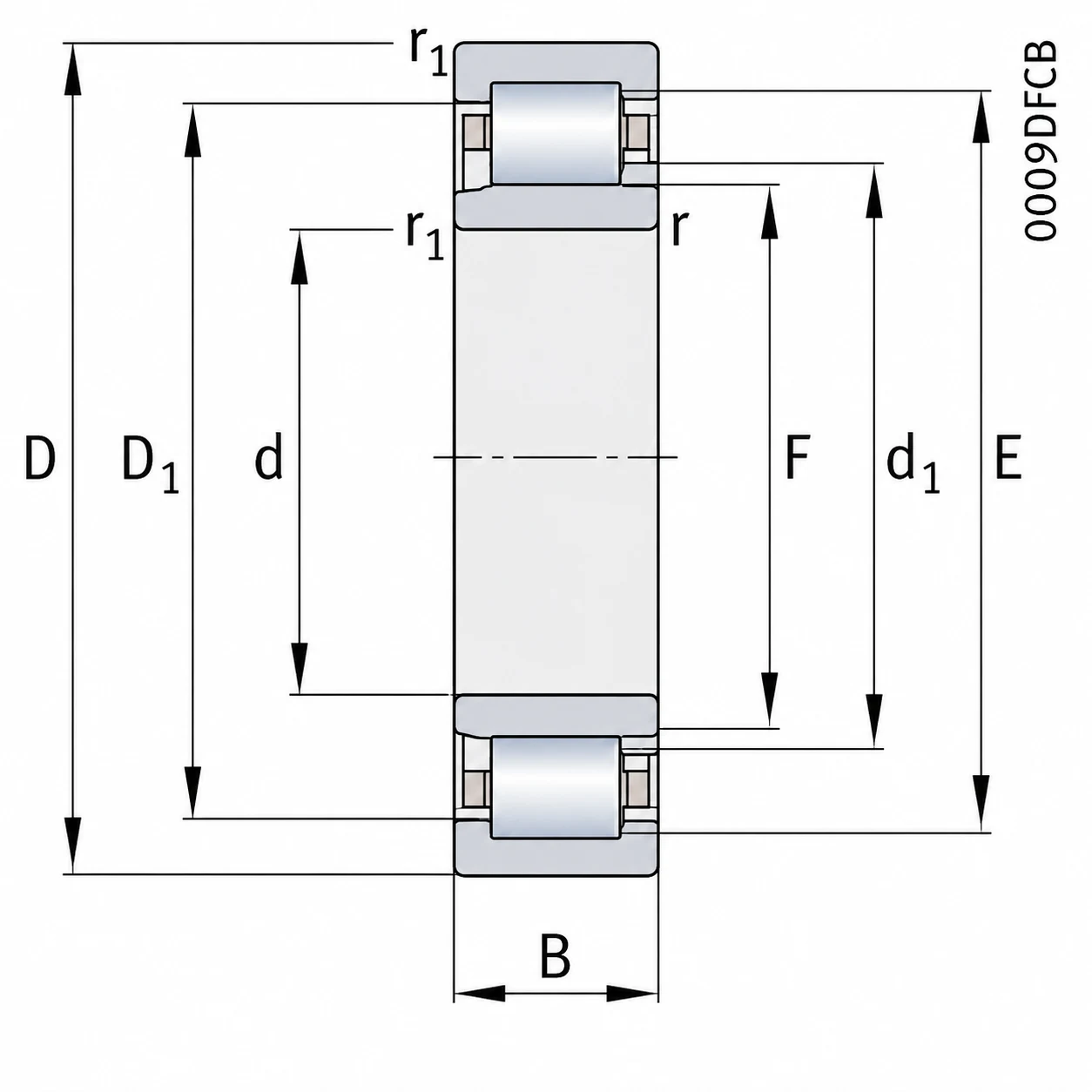

Weight and Dimensions
Bore (d): 170 mm
Outer (D): 360 mm
Width (B): 72 mm
Weight: 38.6 kg
Data from Schaeffler (medias)
Basic Dynamic Load Rating, Radial Cr: 960000 N
Basic Static Load Rating, Radial (C0r): 1210000 N
Fatigue Load Limit, Radial (Cur): 138000 N
Limiting Speed (nG): 2800 rpm
Reference Speed (nϑr): 1610 rpm
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
FAG Cylindrical Bearing Types Model Code Guide
Product Description
The NJ334-E-TB-M1 FAG single row cylindrical roller bearing consists of an inner ring, outer ring, cylindrical rollers, and a brass cage. The E design provides increased load-carrying capacity, while the TB design optimizes roller-to-rib contact for higher axial load capacity and lower friction. The robust M1 brass cage supports reliable operation under heavy and demanding loads.
The NJ334-E-TB-M1 is a semi-locating bearing suitable for steel processing equipment, heavy-duty gearboxes, rolling mill drive systems, and large industrial transmissions. Its high radial load capacity and optimized rib contact support radial loads and axial loads in one direction, making it suitable for heavy-duty and continuous operation.
