NJ348-E-TB-M1+HJ348-E
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ FAG/ OEM
Bearing Number: NJ348-E-TB-M1+HJ348-E
Category: Cylindrical Roller Bearings
1

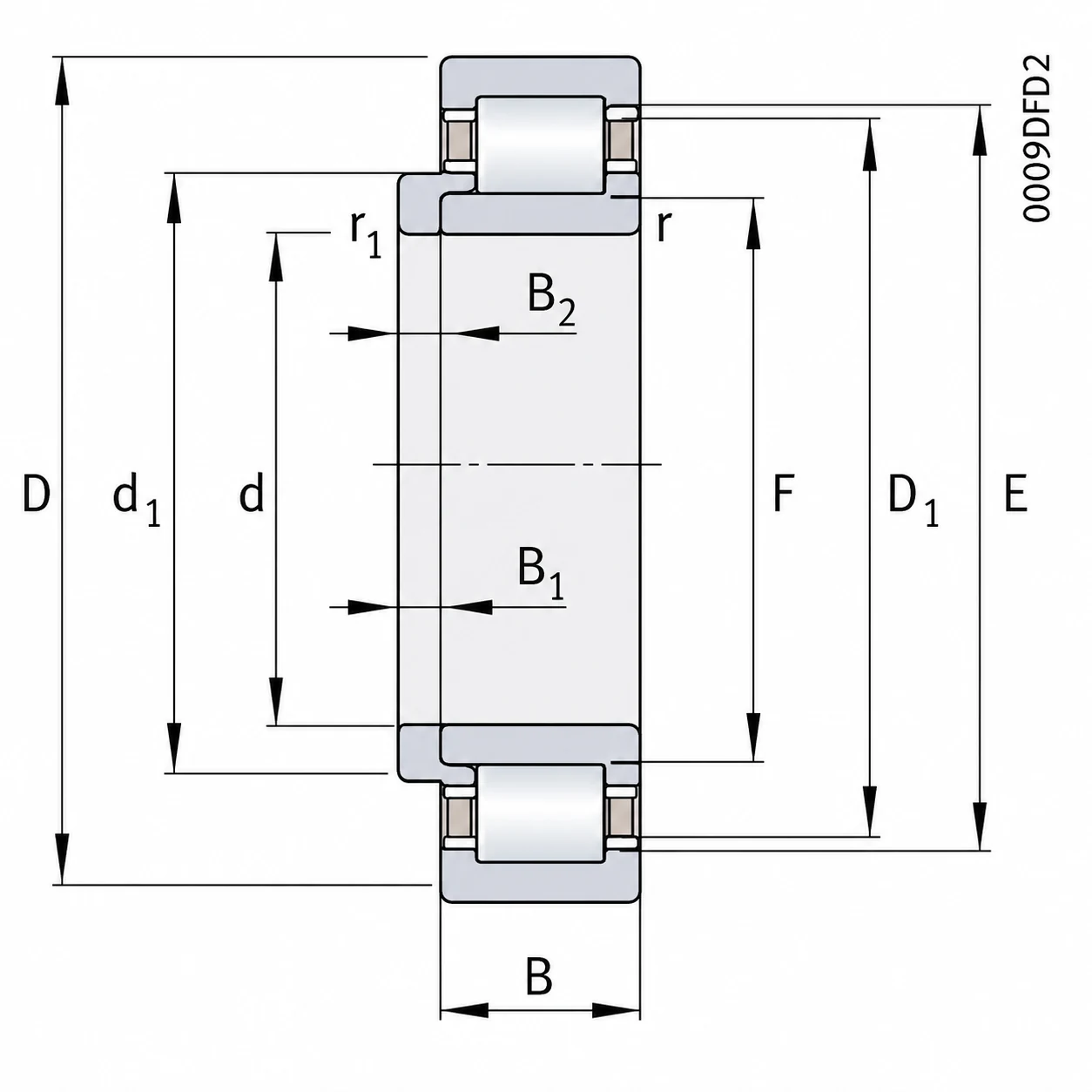

Weight and Dimensions
Bore (d): 240 mm
Outer (D): 500 mm
Width (B): 95 mm
Weight: 105.3 kg
Data from Schaeffler (medias)
Basic Dynamic Load Rating, Radial Cr: 1720000 N
Basic Static Load Rating, Radial (C0r): 2280000 N
Fatigue Load Limit, Radial (Cur): 234000 N
Limiting Speed (nG): 1980 rpm
Reference Speed (nϑr): 1000 rpm
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
FAG Cylindrical Bearing Types Model Code Guide
Product Description
The NJ348-E-TB-M1+HJ348-E FAG cylindrical roller bearing features an NJ design with cylindrical rollers, a brass cage, and an L-section ring. The E design provides increased load-carrying capacity, while the TB design optimizes roller-to-rib contact for higher axial load capacity and lower friction. The robust M1 brass cage supports reliable operation under demanding conditions.
The NJ348-E-TB-M1+HJ348-E bearing is suitable for steel processing equipment, heavy-duty gearboxes, rolling mill auxiliary drives, and industrial transmission systems. Its high radial load capacity, optimized rib contact, and bidirectional axial location provide reliable support under heavy and continuous operating conditions.
