NJ411-XL-M1
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Description
Specifications
Availability: 100 PCS
Brand: HSN/ FAG/ OEM
Bearing Number: NJ411-XL-M1
Category: Cylindrical Roller Bearings
1

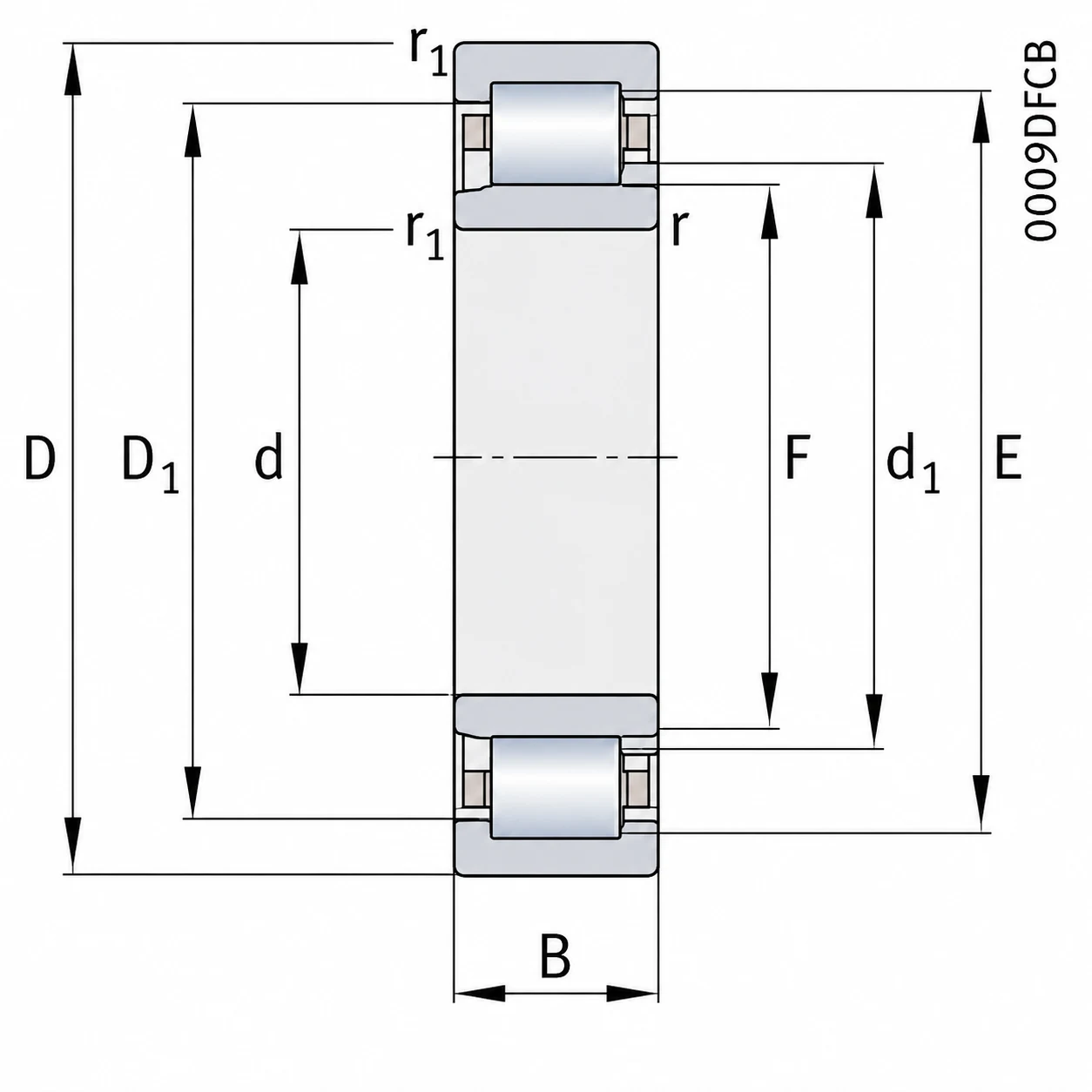

Weight and Dimensions
Bore (d): 55 mm
Outer (D): 140 mm
Width (B): 33 mm
Weight: 2.88 kg
Data from Schaeffler (medias)
Basic Dynamic Load Rating, Radial Cr: 187000 N
Basic Static Load Rating, Radial (C0r): 164000 N
Fatigue Load Limit, Radial (Cur): 30000 N
Limiting Speed (nG): 8200 rpm
Reference Speed (nϑr): 5100 rpm
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
FAG Cylindrical Bearing Types Model Code Guide
Product Description
The NJ411-XL-M1 FAG single row cylindrical roller bearing consists of an inner ring, outer ring, cylindrical rollers, and a brass cage. X-life technology improves load-carrying performance and service life, while the robust M1 brass cage provides reliable roller guidance under demanding loads.
The NJ411-XL-M1 bearing is suitable for industrial gearboxes, steel processing equipment, heavy-duty drive systems, and power transmission machinery. Its high radial load capacity and ability to accommodate axial loads in one direction provide reliable shaft support, making it suitable for demanding industrial applications.
