NJ420-XL-M1+HJ420
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ FAG/ OEM
Bearing Number: NJ420-XL-M1+HJ420
Category: Cylindrical Roller Bearings
1

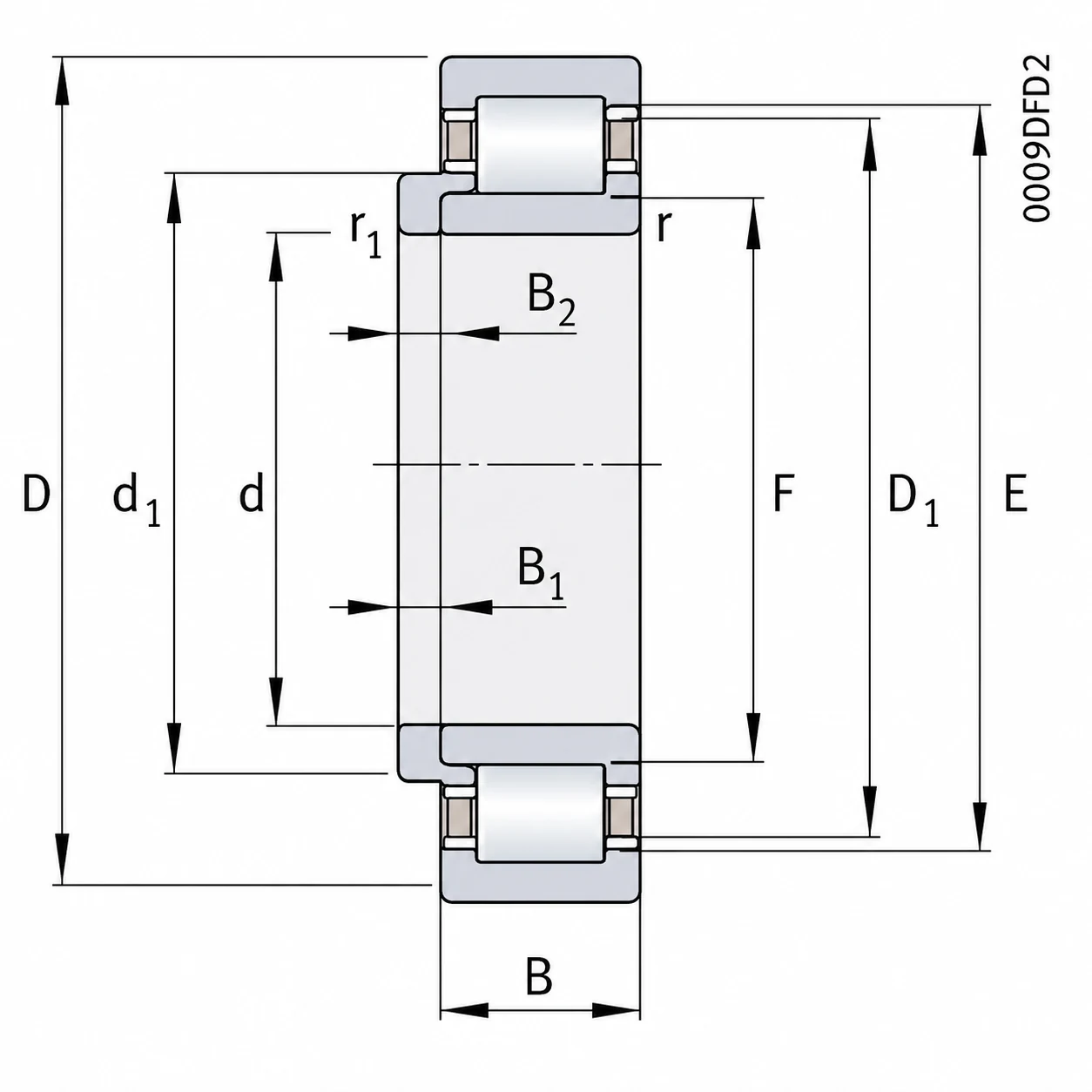

Weight and Dimensions
Bore (d): 100 mm
Outer (D): 250 mm
Width (B): 58 mm
Weight: 17.65 kg
Data from Schaeffler (medias)
Basic Dynamic Load Rating, Radial Cr: 550000 N
Basic Static Load Rating, Radial (C0r): 530000 N
Fatigue Load Limit, Radial (Cur): 86000 N
Limiting Speed (nG): 4350 rpm
Reference Speed (nϑr): 2950 rpm
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
FAG Cylindrical Bearing Types Model Code Guide
Product Description
The NJ420-XL-M1+HJ420 FAG cylindrical roller bearing features an NJ design with cylindrical rollers, a brass cage, and an L-section ring. The X-life design improves load-carrying performance and service life, while the robust M1 brass cage supports stable operation under demanding loads. The L-section ring enables the bearing to accommodate axial loads in both directions.
The NJ420-XL-M1+HJ420 bearing is suitable for industrial gearboxes, steel processing equipment, heavy-duty drive systems, and power transmission machinery. Its high radial load capacity and bidirectional axial location provide stable shaft support, making it a reliable choice for heavy-duty and demanding operating conditions.
