NKXR45-Z-XL

Specifications

Availability: 100 PCS

Brand: HSN/ FAG/ OEM

Bearing Number: NKXR45-Z-XL

Category: Needle Roller Bearings

1

Weight and Dimensions

Under Roller Diameter (Fw): 45 mm

Outside Diameter (D): 58 mm

Height (C): 32 mm

Weight: 260 g

Data from Schaeffler (medias)

Basic Dynamic Load Rating, Radial C_r: 31000 N

Basic Static Load Rating, Radial (C_0r): 53000 N

Basic Static Load Rating, Axial (C_a): 59000 N

Basic Static Load Rating, Axial (C_0a): 163000 N

Fatigue Load Limit, Radial (C_ur): 9300 N

Fatigue Load Limit, Axial (C_ua): 16000 N

Limiting Speed (n_G): 5000 r/min

Reference Speed (n_ϑr): 1900 r/min

Product Properties

Precision: P0, P6, P5

Hardness: HRC58-62

Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.

Cage Material: Brass, Steel

Certificate: ISO9001:2015

1

Downloads & Links

FAG Needle Roller Bearings Guide

Product Description

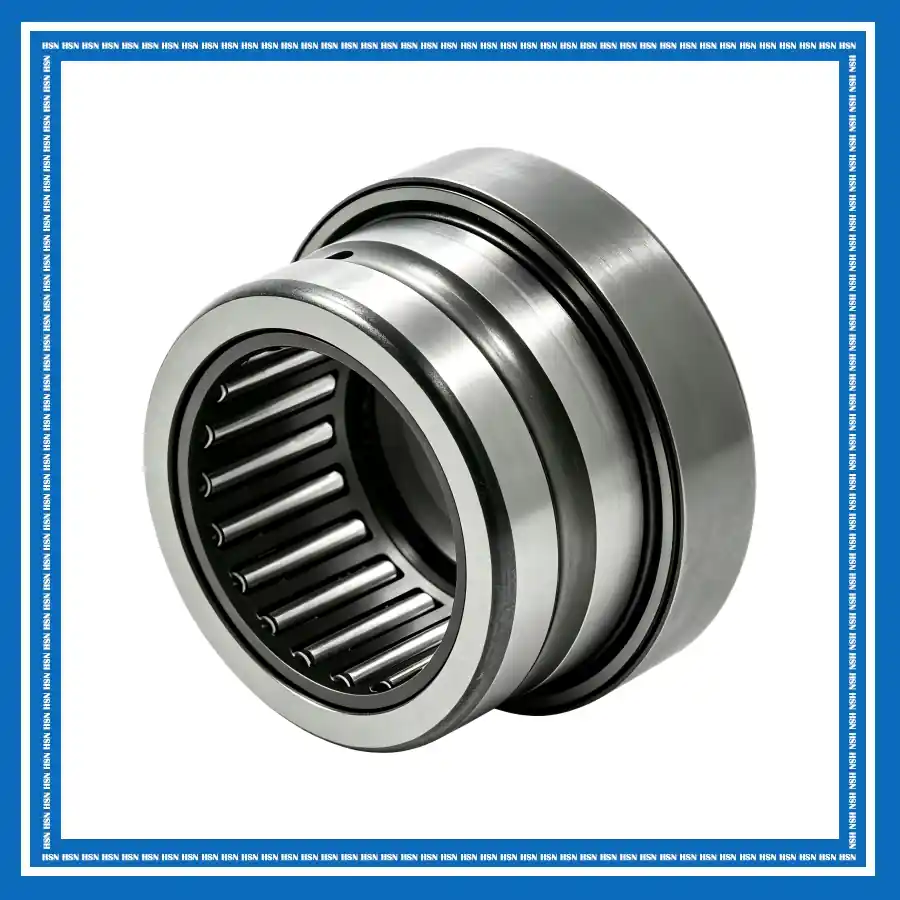

The NKXR45-Z-XL INA combined bearing consists of a radial needle roller bearing and a single-direction axial cylindrical roller bearing, without an inner ring. The radial needle rollers run directly on a suitably hardened and ground shaft raceway, helping minimize radial installation space. The needle roller component supports high radial loads, while the axial cylindrical roller component supports high axial loads in one direction. In addition, X-life improves load carrying capacity and extends operating life.

The NKXR45-Z-XL features a sheet steel end cap secured to the radial bearing component. The end cap grips the shaft locating washer and holds the axial bearing component together, making the bearing self-retaining and simplifying handling and mounting. It is suitable for industrial transmissions, machine tools, printing machinery, material handling, automation, and general mechanical engineering. Its combination of high radial and axial load capacity, compact dimensions, rigidity, and self-retaining construction supports reliable operation in highly loaded mechanical systems.
