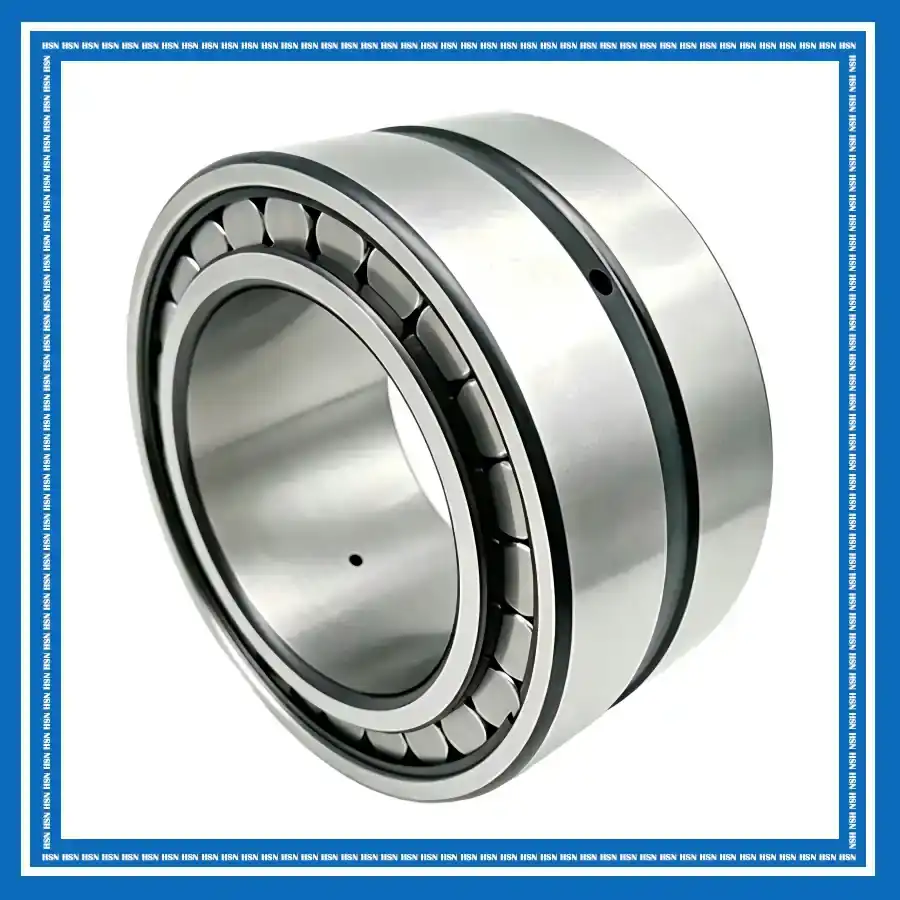

NNCF4872V
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ ARB/ OEM
Bearing Number: NNCF4872V
Category: Cylindrical Roller Bearings
1
Weight and Dimensions
Bore (d): 360 mm 14.1732 in
Outer Diameter (D): 440 mm 17.3228 in
Width (W): 80 mm 3.1496 in
Weight: 27 kg 59.5 lbs
Data from ARB (medias)
Dynamic Capacity (C) : 880 KN 197900 lbs
Static Capacity (Co) : 2550 KN 573300 lbs
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
ARB Cylindrical Roller Bearings Guide
Product Description
The American Roller Bearing NNCF4872V double-row full complement cylindrical roller bearing consists of inner and outer rings with two rows of cylindrical rollers and no conventional cage. Its full complement design incorporates more rollers to provide high radial load capacity and rigidity, while the NNCF configuration provides reliable shaft location in one direction. The increased number of rollers makes it particularly suitable for heavy-load, moderate-speed operation. It is suitable for industrial gearboxes, steel mill equipment, material handling machinery, heavy-duty transmission systems, and other demanding applications requiring high radial load capacity and one-direction axial location.
