NNCF4928V
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ ARB/ OEM
Bearing Number: NNCF4928V
Category: Cylindrical Roller Bearings
1
Weight and Dimensions
Bore (d): 140 mm 5.5118 in
Outer Diameter (D): 190 mm 7.4803 in
Width (W): 50 mm 1.9685 in
Weight: 4 kg 9 lbs
Data from ARB (medias)
Dynamic Capacity (C) : 265 KN 59600 lbs
Static Capacity (Co) : 570 KN 128200 lbs
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
ARB Cylindrical Roller Bearings Guide
Product Description

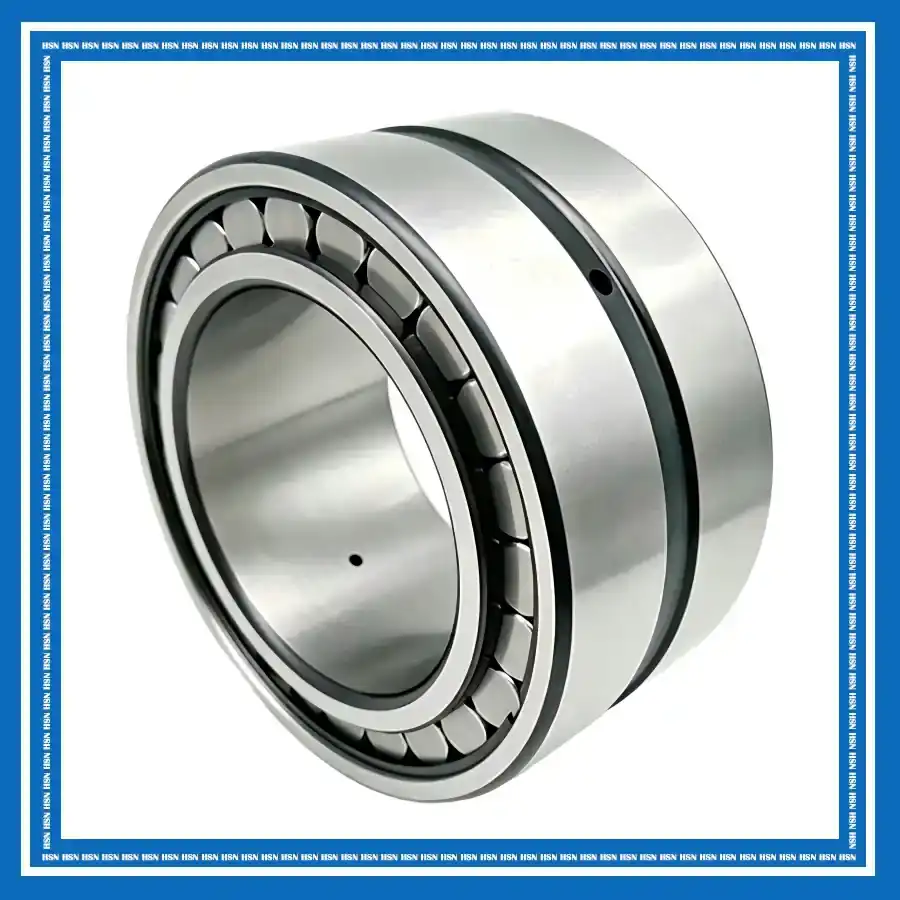

The American Roller Bearing NNCF4928V double-row full complement cylindrical roller bearing consists of inner and outer rings with two rows of cylindrical rollers and no conventional cage. Its full complement design incorporates more rollers to provide high radial load capacity and rigidity, while the NNCF configuration provides reliable shaft location in one direction. The increased number of rollers makes it particularly suitable for heavy-load, moderate-speed operation. It is suitable for industrial gearboxes, steel mill equipment, material handling machinery, heavy-duty transmission systems, and other demanding applications requiring high radial load capacity and one-direction axial location.
