NNCL48/530V
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ ARB/ OEM
Bearing Number: NNCL48/530V
Category: Cylindrical Roller Bearings
1
Weight and Dimensions
Bore (d): 530 mm 20.8661 in
Outer Diameter (D): 650 mm 25.5906 in
Width (W): 118 mm 4.6457 in
Weight: 84 kg 185 lbs
Data from ARB (medias)
Dynamic Capacity (C) : 1680 KN 377700 lbs
Static Capacity (Co) : 5400 KN 1214000 lbs
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
ARB Cylindrical Roller Bearings Guide
Product Description

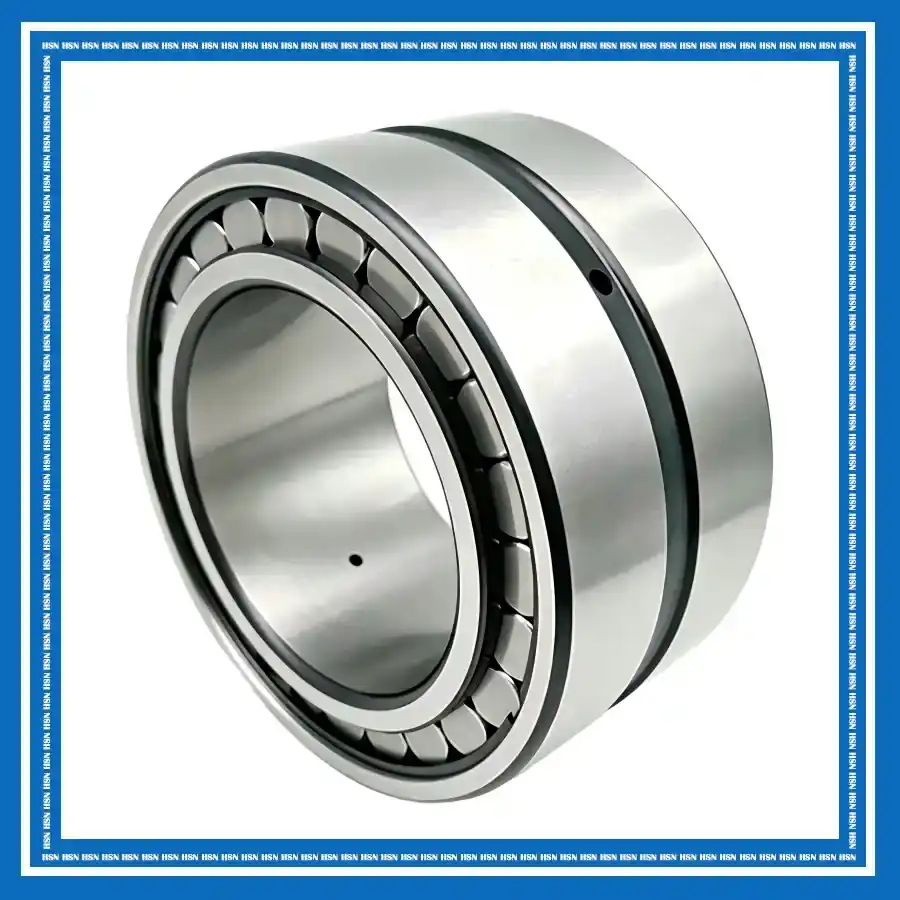

The American Roller Bearing NNCL48/530V double-row full complement cylindrical roller bearing consists of inner and outer rings with two rows of cylindrical rollers and no conventional cage. Its full complement design incorporates more rollers to provide high radial load capacity and rigidity, while the NNCL configuration allows axial displacement between the shaft and housing to accommodate expansion during operation. The increased number of rollers makes it particularly suitable for heavy-load, moderate-speed conditions. It is suitable for industrial gearboxes, steel mill equipment, material handling machinery, heavy-duty transmission systems, and other demanding applications requiring high radial load capacity and axial displacement capability.
