NNCL4916V
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ FAG/ OEM
Bearing Number: NNCL4916V
Category: Cylindrical Roller Bearings
1
Weight and Dimensions
Bore (d): 80 mm
Outer (D): 110 mm
Width (B): 30 mm
Weight: 0.85 kg
Data from Schaeffler (medias)
Basic Dynamic Load Rating, Radial Cr: 112000 N
Basic Static Load Rating, Radial (C0r): 206000 N
Fatigue Load Limit, Radial (Cur): 30000 N
Limiting Speed (nG): 3550 rpm
Reference Speed (nϑr): 2090 rpm
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
FAG Cylindrical Bearing Types Model Code Guide
Product Description

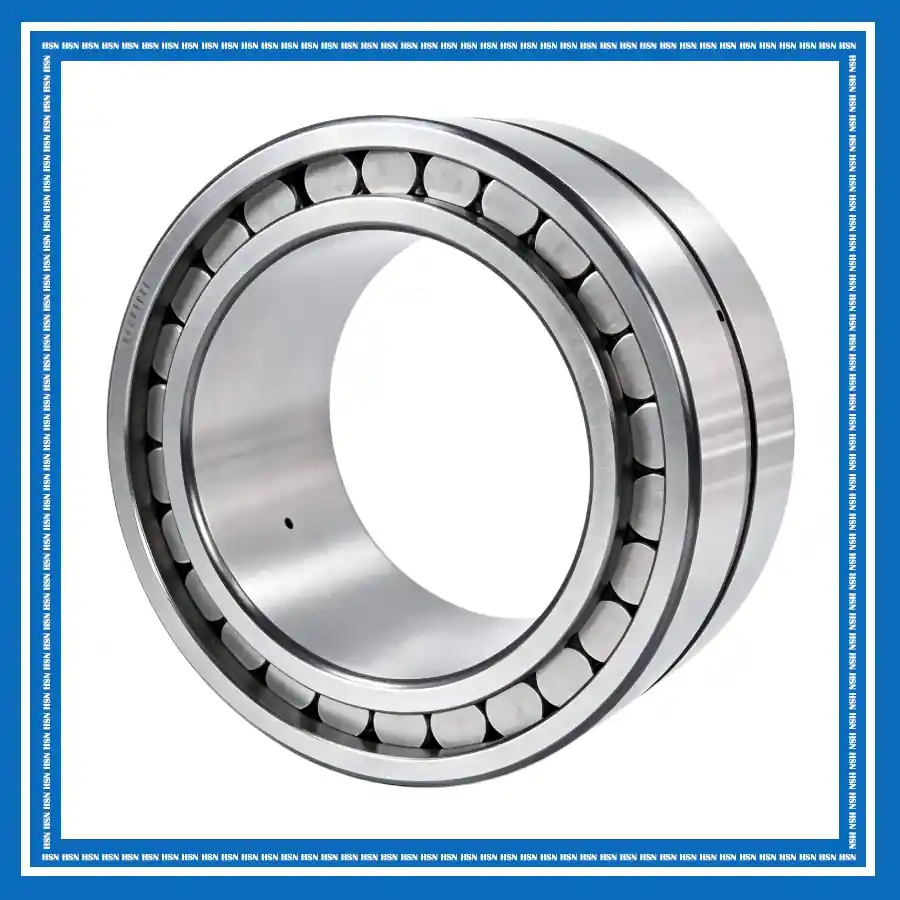

The NNCL4916V double row full complement cylindrical roller bearing features an inner ring with three integral flanges, a flangeless outer ring, and two rows of cylindrical rollers without a cage. The full complement roller arrangement provides very high radial load capacity and high radial rigidity. Its ring configuration also permits axial displacement between the shaft and housing.
The NNCL4916V is suitable for large electric motors, generators, paper machine rolls, and long industrial drive shafts. Its high radial capacity supports heavily loaded rotating components, while the axial displacement capability accommodates shaft movement caused by thermal expansion. This helps maintain stable radial support during continuous operation.
