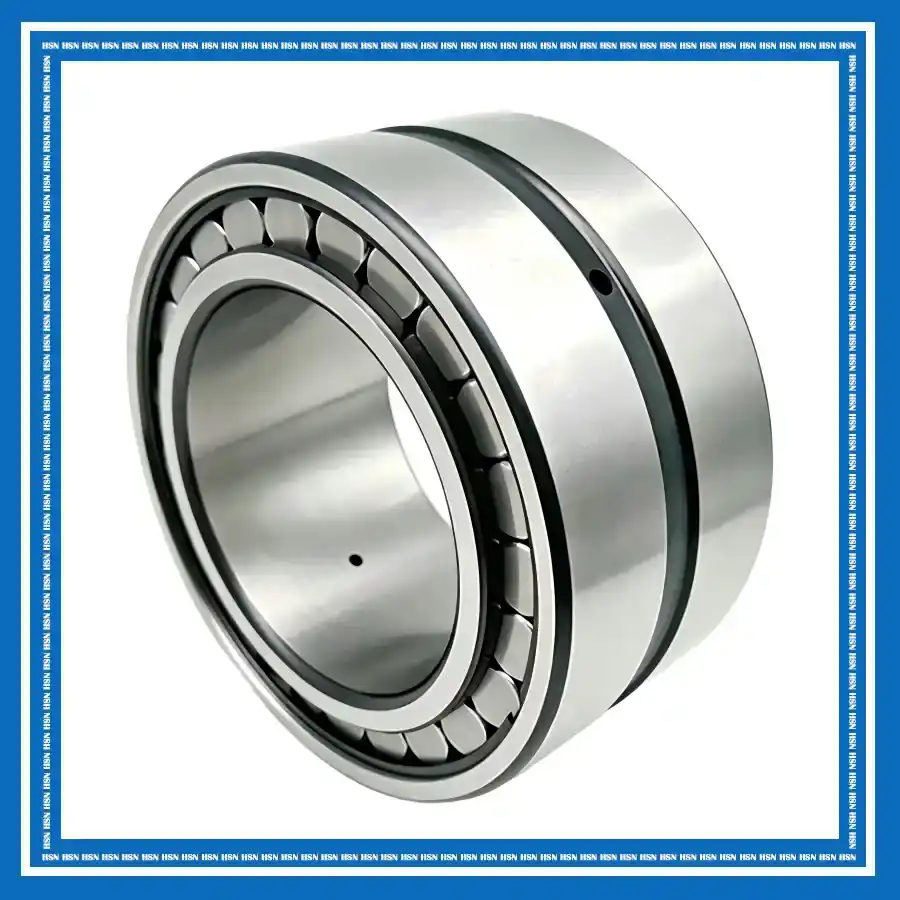

NNCL5040V
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ ARB/ OEM
Bearing Number: NNCL5040V
Category: Cylindrical Roller Bearings
1
Weight and Dimensions
Bore (d): 200 mm 7.8740 in
Outer Diameter (D): 310 mm 12.2047 in
Width (W): 150 mm 5.9055 in
Weight: 41 kg 90.4 lbs
Data from ARB (medias)
Dynamic Capacity (C) : 1570 KN 353000 lbs
Static Capacity (Co) : 3050 KN 685700 lbs
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
ARB Cylindrical Roller Bearings Guide
Product Description
The American Roller Bearing NNCL5040V double-row full complement cylindrical roller bearing consists of inner and outer rings with two rows of cylindrical rollers and no conventional cage. Its full complement design incorporates more rollers to provide high radial load capacity and rigidity, while the NNCL configuration allows axial displacement between the shaft and housing to accommodate expansion during operation. The increased number of rollers makes it particularly suitable for heavy-load, moderate-speed conditions. It is suitable for industrial gearboxes, steel mill equipment, material handling machinery, heavy-duty transmission systems, and other demanding applications requiring high radial load capacity and axial displacement capability.
