PNA17/35-XL

Specifications

Availability: 100 PCS

Brand: HSN/ FAG/ OEM

Bearing Number: PNA17/35-XL

Category: Needle Roller Bearings

1

Weight and Dimensions

Under Roller Diameter (Fw): 17 mm

Outside Diameter (D): 35 mm

Width, Outer Ring (C): 16 mm

Weight: 73 g

Data from Schaeffler (medias)

Basic Dynamic Load Rating, Radial C_r: 14600 N

Basic Static Load Rating, Radial (C_0r): 17500 N

Fatigue Load Limit, Radial (C_ur): 3200 N

Limiting Speed (n_G): 21100 r/min

Product Properties

Precision: P0, P6, P5

Hardness: HRC58-62

Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.

Cage Material: Brass, Steel

Certificate: ISO9001:2015

1

Downloads & Links

FAG Needle Roller Bearings Guide

Product Description

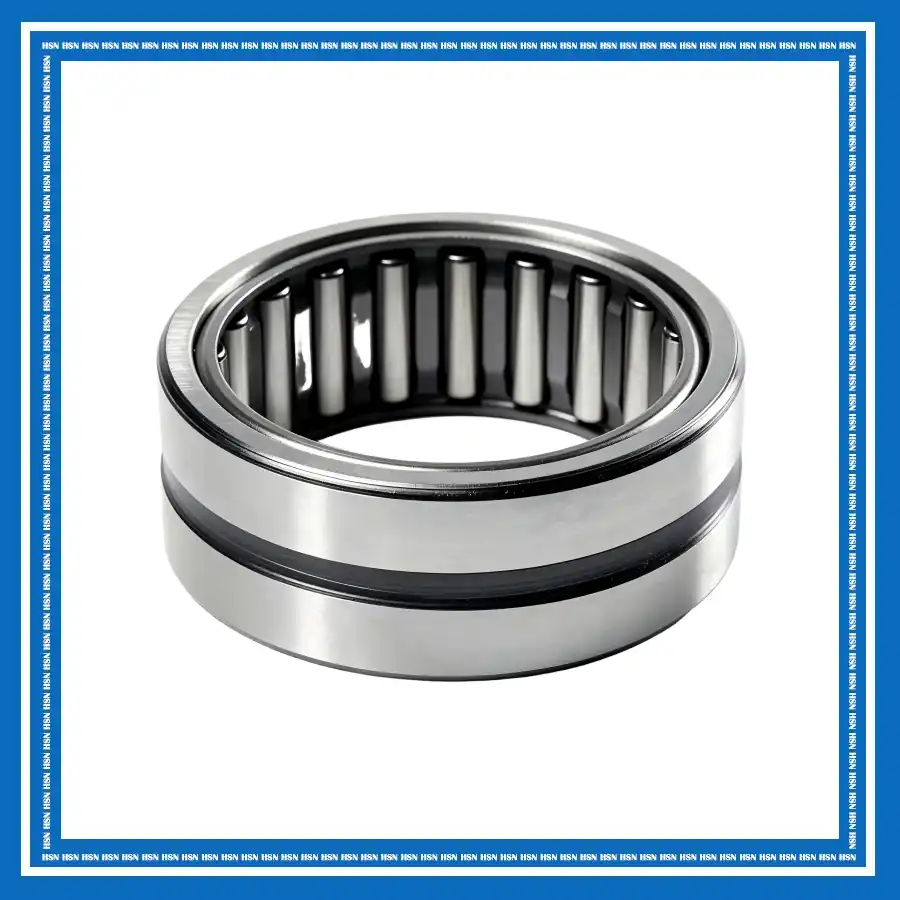

The PNA17/35-XL INA aligning needle roller bearing consists of a drawn outer sleeve, a plastic support ring with a concave inner surface, an outer ring with a spherical outside surface, a needle roller and cage assembly, and a removable inner ring. The inner ring provides a precision raceway for the needle rollers. Its aligning design can compensate for static misalignment between the shaft and housing, while the needle roller arrangement provides high radial load capacity within a compact radial cross-section. In addition, X-life increases load carrying capacity and extends operating life.

The PNA17/35-XL bearing is suitable for industrial transmissions, agricultural machinery, textile machinery, printing and packaging, material handling, and general mechanical engineering. Its aligning capability helps compensate for shaft-to-housing misalignment, while the inner ring allows use where the shaft cannot serve directly as a raceway. Meanwhile, the combination of high radial load capacity, compact dimensions, misalignment compensation, and long service life supports reliable operation in mechanical systems with alignment variations.
