QJ303-XL-MPA
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ FAG/ OEM
Bearing Number: QJ303-XL-MPA
Category: Angular Contact Ball Bearings
1
Weight and Dimensions
Bore (d): 17 mm
Outer (D): 47 mm
Width (B): 14 mm
Weight: 0.148 kg
Data from Schaeffler (medias)
Basic Dynamic Load Rating, Radial Cr: 24500 N
Basic Static Load Rating, Radial (C0r): 15100 N
Fatigue Load Limit, Radial (Cur): 1100 N
Limiting Speed (nG): 29500 rpm
Reference Speed (nϑr): 12000 rpm
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
FAG Angular Contact Ball Bearings
Product Description

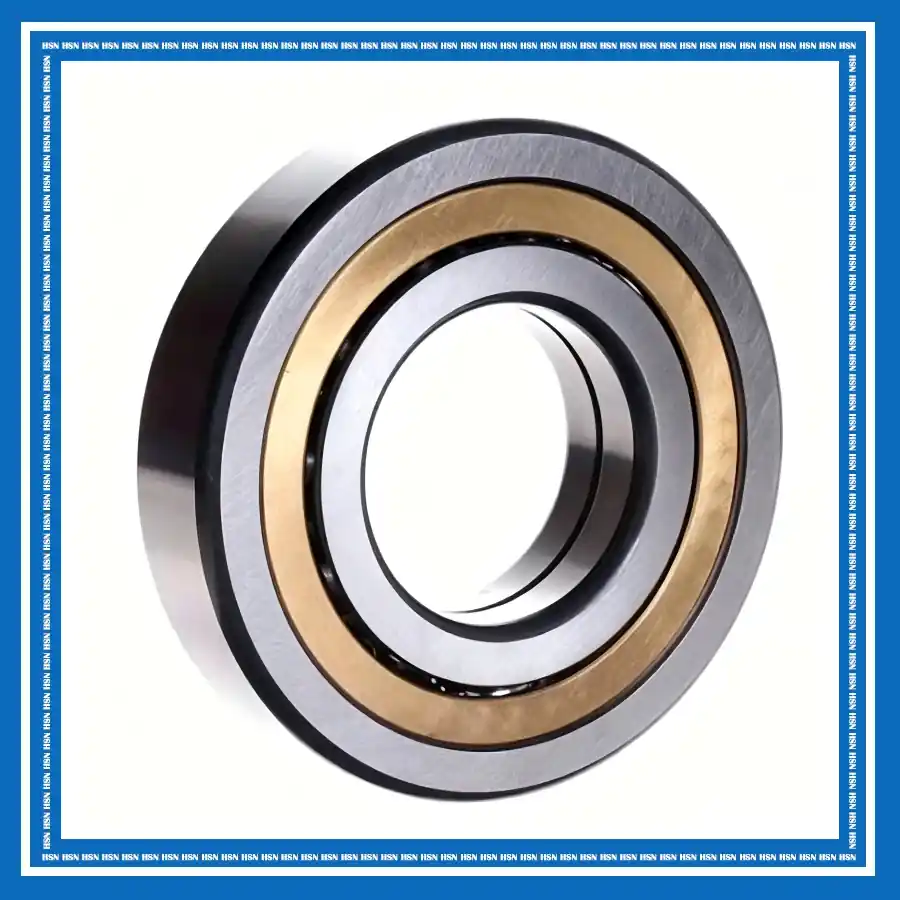

The QJ303-XL-MPA FAG four-point contact ball bearing consists of a solid outer ring, a split inner ring, balls, and an outer-ring-guided solid brass cage. The four-point contact design provides high axial load capacity in both directions while also supporting limited radial loads. The X-life design improves load-carrying performance and service life, while the robust MPA brass cage provides reliable ball guidance and stable operation under demanding conditions.
The QJ303-XL-MPA bearing is widely used in heavy industrial gearboxes, steel processing equipment, process machinery, and heavy-duty transmission systems. It is particularly suitable for applications requiring high bidirectional axial load capacity, robust cage performance, compact bearing arrangements, and reliable operation under demanding loads.
