QJ320-N2-MPA
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ FAG/ OEM
Bearing Number: QJ320-N2-MPA
Category: Angular Contact Ball Bearings
1
Weight and Dimensions
Bore (d): 100 mm
Outer (D): 215 mm
Width (B): 47 mm
Weight: 9.04 kg
Data from Schaeffler (medias)
Basic Dynamic Load Rating, Radial Cr: 325000 N
Basic Static Load Rating, Radial (C0r): 365000 N
Fatigue Load Limit, Radial (Cur): 16300 N
Limiting Speed (nG): 5400 rpm
Reference Speed (nϑr): 3000 rpm
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
FAG Angular Contact Ball Bearings
Product Description

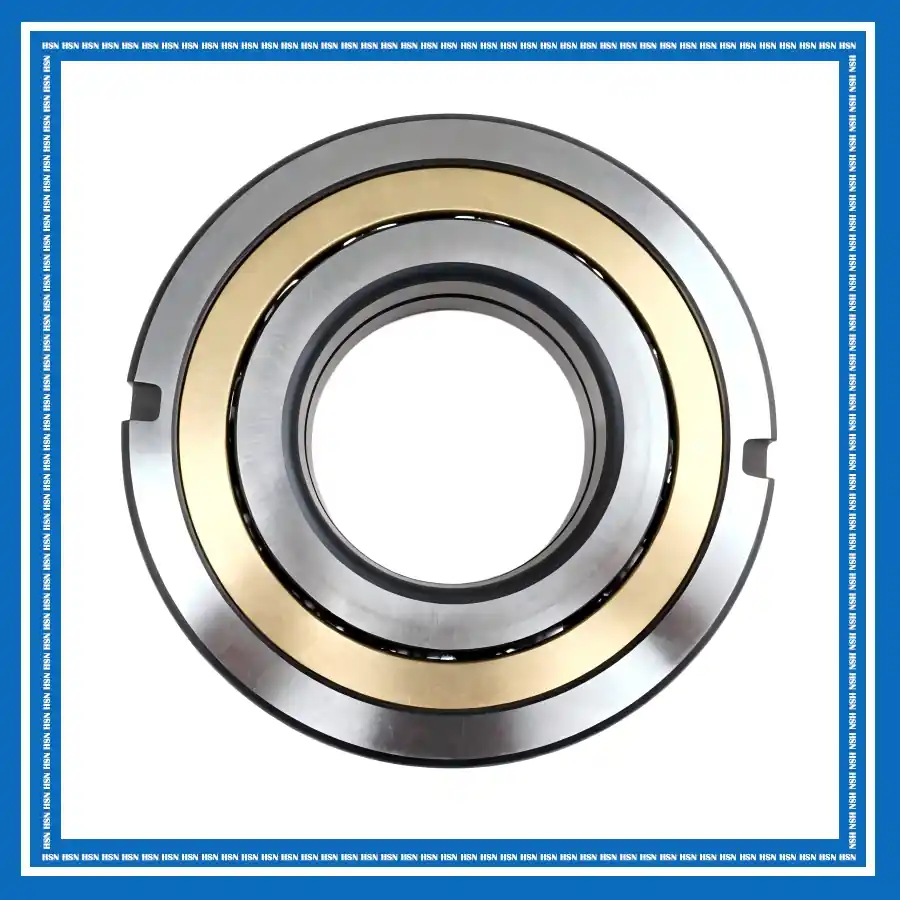

The QJ320-N2-MPA FAG four-point contact ball bearing consists of a solid outer ring with two retaining slots, a split inner ring, balls, and an outer-ring-guided solid brass cage. The four-point contact design provides high axial load capacity in both directions while also supporting limited radial loads. The N2 retaining slots provide secure outer-ring location, while the robust MPA brass cage provides reliable ball guidance and stable operation under demanding conditions.
The QJ320-N2-MPA bearing is widely used in railway gear units, heavy industrial gearboxes, large reducers, and heavy-duty drive systems. It is particularly suitable for applications requiring high bidirectional axial load capacity, secure outer-ring location, robust cage performance, and stable operation under heavy-duty conditions.
