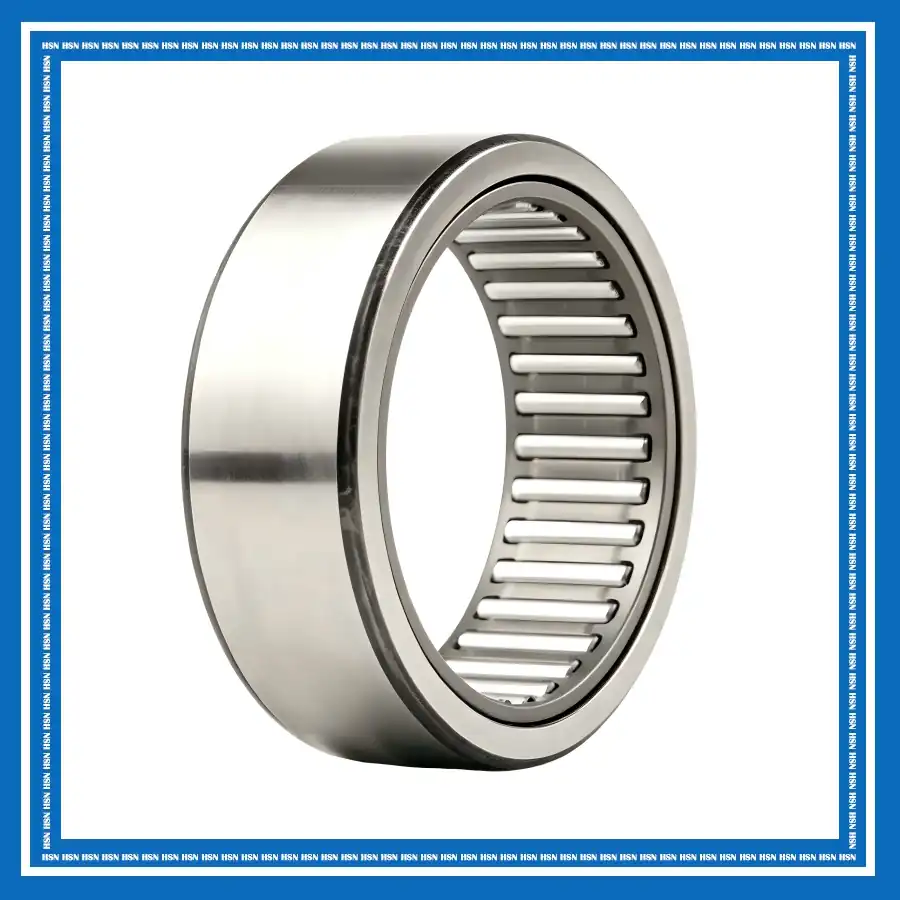

RNAO45×62×40-ZW-ASR1-XL
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ FAG/ OEM
Bearing Number: RNAO45×62×40-ZW-ASR1-XL
Category: Needle Roller Bearings
1
Weight and Dimensions
Bore Diameter (Fw): 45 mm
Outside Diameter (D): 62 mm
Width (B): 40 mm
Weight: 377 g
Data from Schaeffler (medias)
Basic Dynamic Load Rating, Radial Cr: 76000 N
Basic Static Load Rating, Radial (C0r): 135000 N
Fatigue Load Limit, Radial (Cur): 21500 N
Limiting Speed (nG): 10000 r/min
Reference Speed (nG): 5900 r/min
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
FAG Needle Roller Bearings Guide
Product Description
The RNAO45×62×40-ZW-ASR1-XL FAG machined needle roller bearing consists of a ribless machined outer ring, two rows of needle rollers, and cage assemblies, without an inner ring. The needle rollers run directly on a suitably hardened and ground shaft raceway, helping minimize radial installation space. The double-row ZW design provides high radial load capacity and rigidity, while the ribless construction allows the components to be mounted separately. In addition, X-life improves load ratings, operating performance, and service life.
It is suitable for industrial transmissions, machine tools, printing and packaging, textile machinery, material handling, and general mechanical engineering. Its combination of compact radial dimensions, double-row radial load capacity, rigidity, and effective relubrication supports reliable operation in highly loaded mechanical systems.
