Specifications
Availability: 100 PCS
Brand: HSN/ FAG/ OEM
Bearing Number: SL014840
Category: Cylindrical Roller Bearings
1

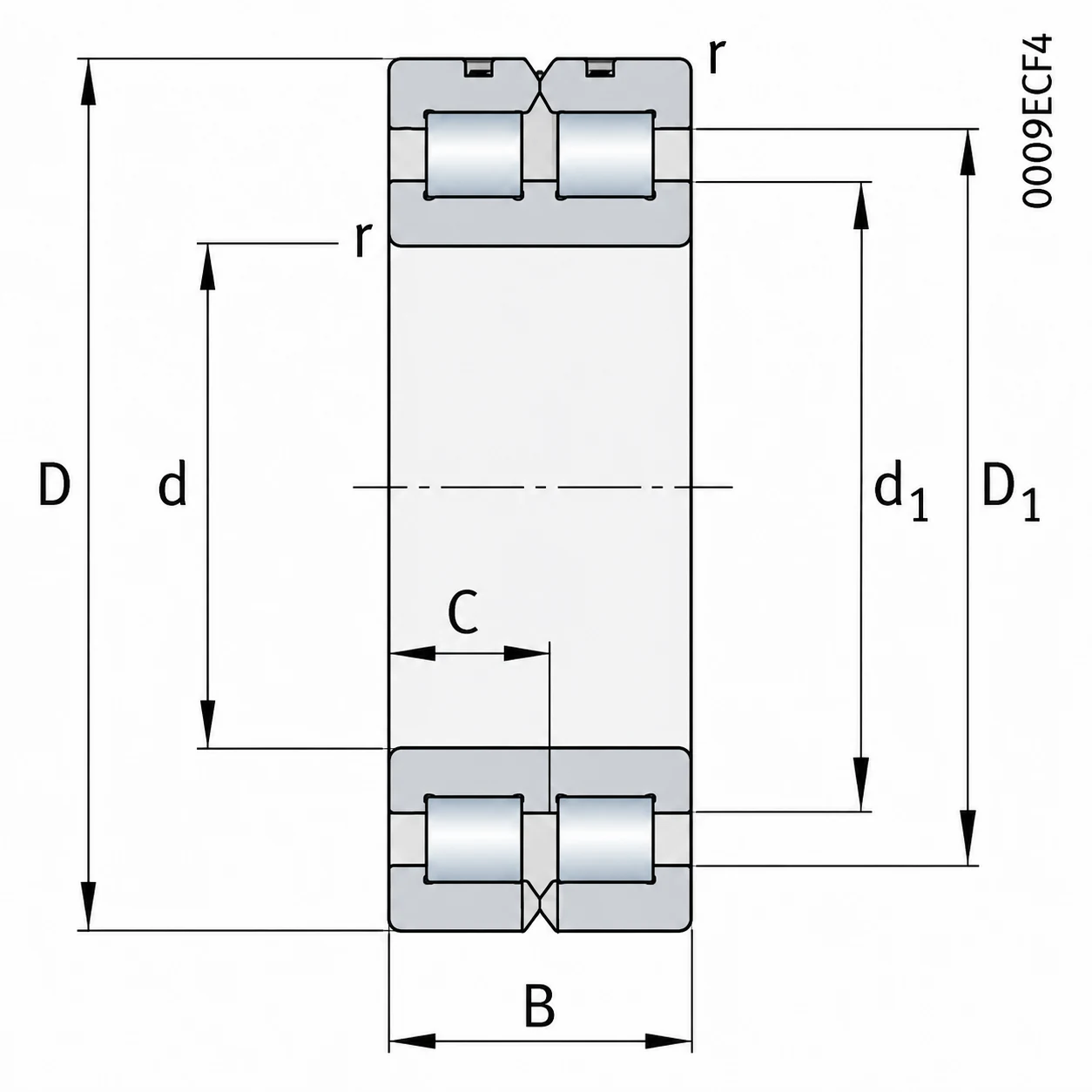

Weight and Dimensions
Bore (d): 200 mm
Outer (D): 250 mm
Width (B): 50 mm
Weight: 5.9 kg
Data from Schaeffler (medias)
Basic Dynamic Load Rating, Radial Cr: 320000 N
Basic Static Load Rating, Radial (C0r): 770000 N
Fatigue Load Limit, Radial (Cur): 84000 N
Limiting Speed (nG): 1410 rpm
Reference Speed (nϑr): 960 rpm
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
FAG Cylindrical Bearing Types Model Code Guide
Product Description
The SL014840 double row full complement cylindrical roller bearing features two rows of cylindrical rollers without a cage and a rib arrangement that provides axial guidance in both directions. The full complement roller set provides very high radial load capacity and high rigidity, while the bearing can also accommodate axial loads from both directions.
The SL014840 is suitable for industrial gear shafts, machine tool drive systems, heavy reducers, and production machinery requiring controlled axial shaft positioning. Its combined radial and bidirectional axial load capability provides stable shaft guidance under complex loading conditions and helps maintain accurate positioning of heavily loaded rotating components.
