SL185007-XL
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ FAG/ OEM
Bearing Number: SL185007-XL
Category: Cylindrical Roller Bearings
1

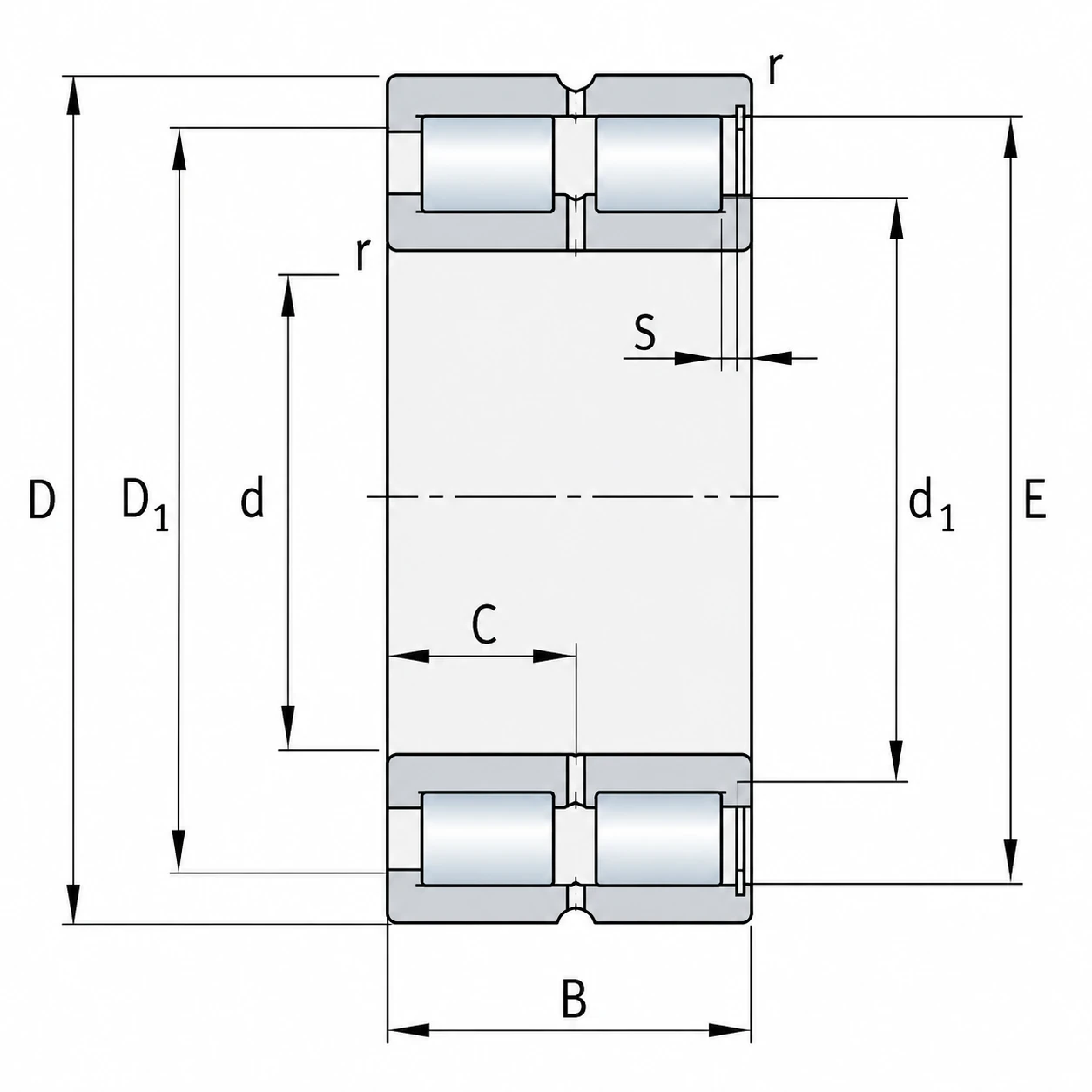

Weight and Dimensions
Bore (d): 35 mm
Outer (D): 62 mm
Width (B): 36 mm
Weight: 0.46 kg
Data from Schaeffler (medias)
Basic Dynamic Load Rating, Radial Cr: 94000 N
Basic Static Load Rating, Radial (C0r): 107000 N
Fatigue Load Limit, Radial (Cur): 18800 N
Limiting Speed (nG): 7100 rpm
Reference Speed (nϑr): 4750 rpm
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
FAG Cylindrical Bearing Types Model Code Guide
Product Description
The SL185007-XL double row full complement cylindrical roller bearing consists of an inner ring, outer ring, and two rows of cylindrical rollers without a cage. The full complement design provides very high radial load capacity and high rigidity, while its rib arrangement enables axial load accommodation in one direction. In addition, X-life technology improves operating performance and extends bearing service life.
The SL185007-XL is suitable for planetary gear stages, wheel drives, construction machinery final drives, and compact reduction units. Its high radial capacity supports heavily loaded gears and shafts, while its axial load capability helps guide the shaft under combined loads. The compact design also makes it suitable for power-dense transmission systems with limited installation space.
