SL185034
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ FAG/ OEM
Bearing Number: SL185034
Category: Cylindrical Roller Bearings
1

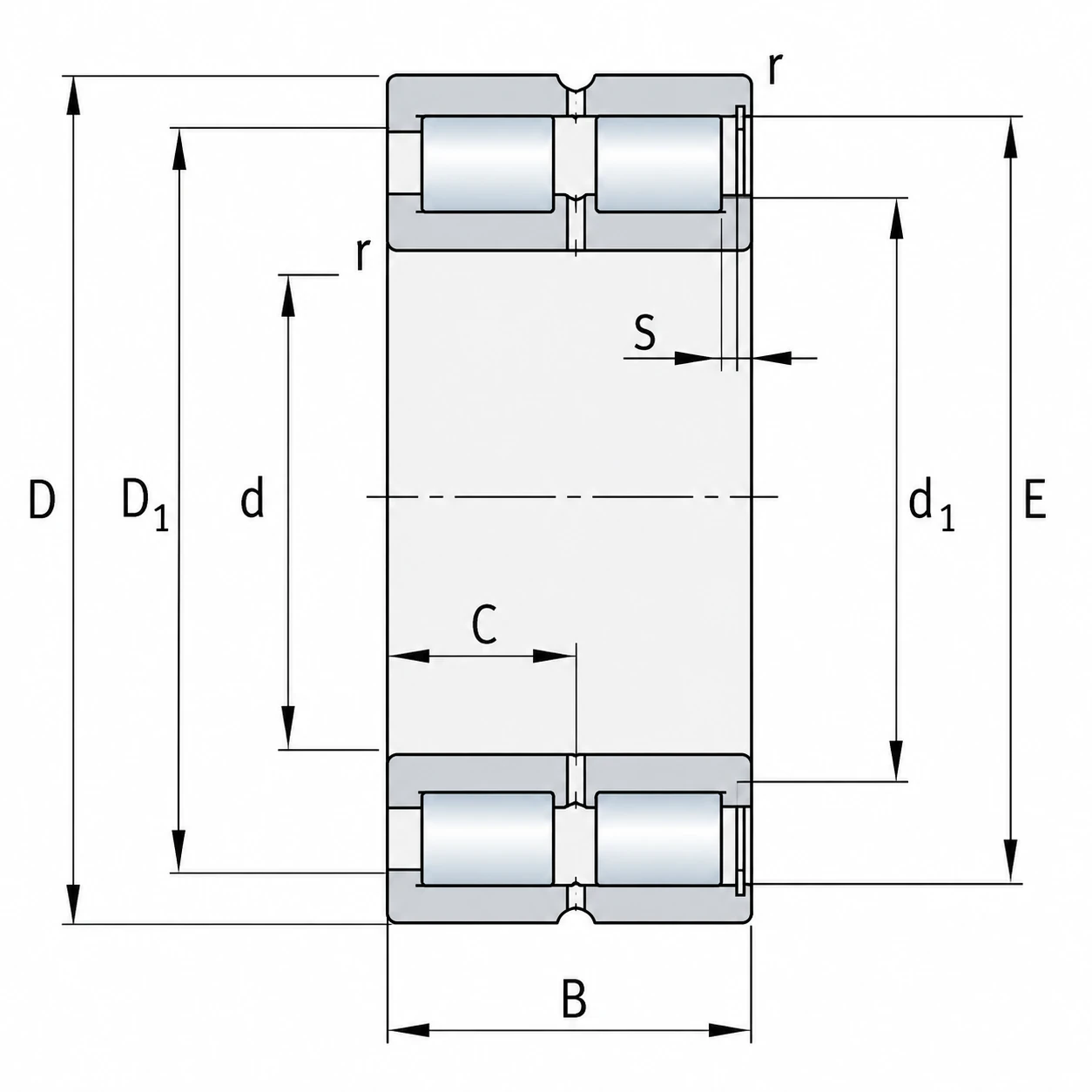

Weight and Dimensions
Bore (d): 170 mm
Outer (D): 260 mm
Width (B): 122 mm
Weight: 22.5 kg
Data from Schaeffler (medias)
Basic Dynamic Load Rating, Radial Cr: 1200000 N
Basic Static Load Rating, Radial (C0r): 2110000 N
Fatigue Load Limit, Radial (Cur): 265000 N
Limiting Speed (nG): 1480 rpm
Reference Speed (nϑr): 900 rpm
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
FAG Cylindrical Bearing Types Model Code Guide
Product Description
The SL185034 double row full complement cylindrical roller bearing uses two rows of cylindrical rollers without a cage. The high roller count provides very high radial load capacity and high rigidity, while the internal rib arrangement allows axial loads to be accommodated in one direction. Its robust construction supports stable operation under sustained heavy loads.
The SL185034 is suitable for industrial planetary reducers, conveyor drum drives, bucket elevator gear units, and heavy material handling drives. Its high radial capacity supports heavily loaded shafts and gears, while the rigid double row construction helps maintain stable operation under continuous loads and frequent load changes.
