SL185040-TB
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ FAG/ OEM
Bearing Number: SL185040-TB
Category: Cylindrical Roller Bearings
1
Weight and Dimensions
Bore (d): 200 mm
Outer (D): 310 mm
Width (B): 150 mm
Weight: 40.4 kg
Data from Schaeffler (medias)
Basic Dynamic Load Rating, Radial Cr: 1630000 N
Basic Static Load Rating, Radial (C0r): 3000000 N
Fatigue Load Limit, Radial (Cur): 365000 N
Limiting Speed (nG): 1230 rpm
Reference Speed (nϑr): 710 rpm
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
FAG Cylindrical Bearing Types Model Code Guide
Product Description

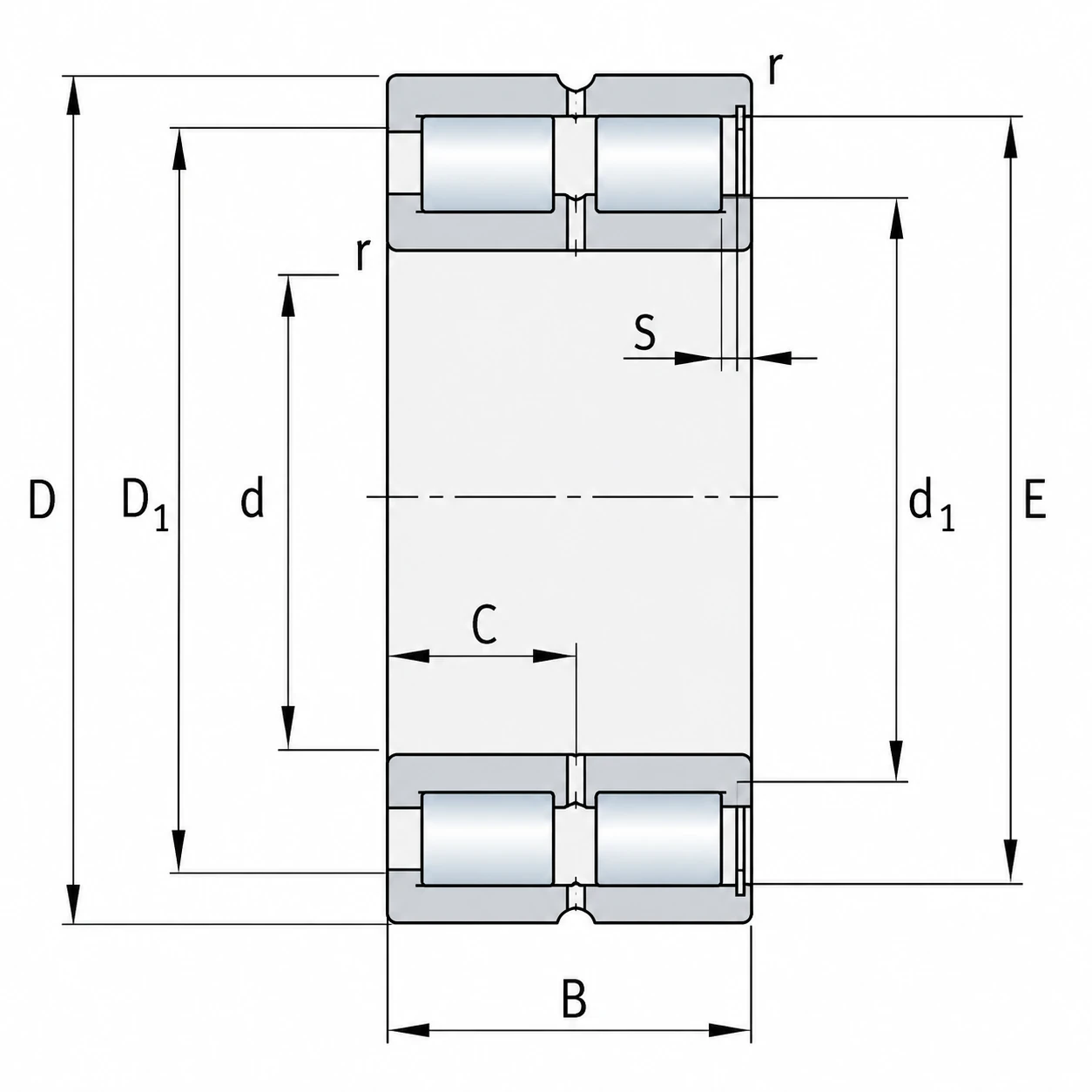

The SL185040-TB double row full complement cylindrical roller bearing combines two rows of uncaged cylindrical rollers with the TB internal design. The full complement arrangement provides very high radial load capacity and high rigidity. Meanwhile, the TB design optimizes roller-end and rib contact, improving axial load transmission and reducing friction under axial loads.
The SL185040-TB is suitable for large winch gearboxes, crane hoist drives, high-torque planetary reducers, and heavy-duty gear transmissions. Its high radial capacity supports heavily loaded gears, while the optimized rib contact improves performance when axial forces occur during torque transmission. This combination supports reliable operation in high-load drive systems.
