SL192308-XL
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ FAG/ OEM
Bearing Number: SL192308-XL
Category: Cylindrical Roller Bearings
1
Weight and Dimensions
Bore (d): 40 mm
Outer (D): 90 mm
Width (B): 33 mm
Weight: 1.01 kg
Data from Schaeffler (medias)
Basic Dynamic Load Rating, Radial Cr: 170000 N
Basic Static Load Rating, Radial (C0r): 153000 N
Fatigue Load Limit, Radial (Cur): 28500 N
Limiting Speed (nG): 5000 rpm
Reference Speed (nϑr): 3050 rpm
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
FAG Cylindrical Bearing Types Model Code Guide
Product Description

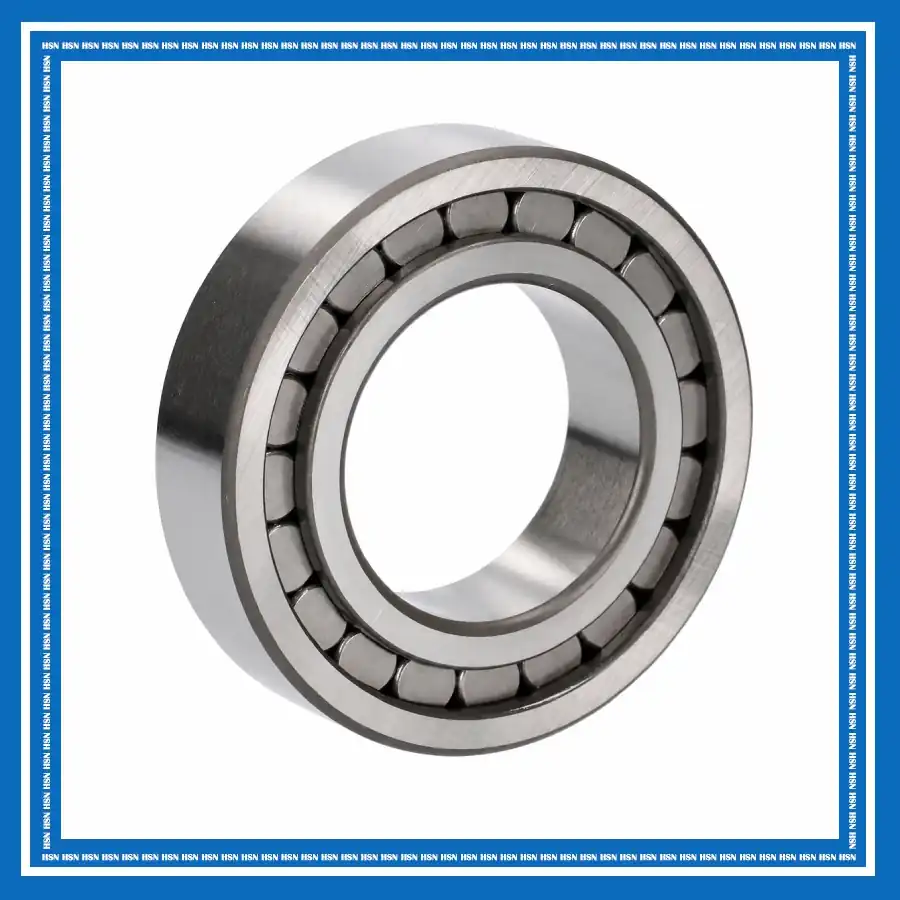

The SL192308-XL FAG single row full complement cylindrical roller bearing consists of an inner ring, outer ring, and a full complement of cylindrical rollers without a cage. The full complement design provides very high radial load capacity and high rigidity. In addition, X-life technology improves operating performance and service life under demanding loads.
The SL192308-XL bearing is suitable for compact gear units, construction equipment, lifting mechanisms, and industrial transmission systems. Its high load capacity and rigid design provide reliable support where installation space is limited and heavy radial loads must be accommodated.
