T2ED022
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ FAG/ OEM
Bearing Number: T2ED022
Category: Tapered Roller Bearings
1
Weight and Dimensions
Bore (d): 22 mm
Outer (D): 52 mm
Width, Inner Ring (B): 22 mm
Width, Outer Ring (C): 18.5 mm
Width, Total (T): 22 mm
Weight: 0.239 kg
Data from Schaeffler (medias)
Basic Dynamic Load Rating, Radial Cr: 47500 N
Basic Static Load Rating, Radial (C0r): 51000 N
Fatigue Load Limit, Radial (Cur): 6000 N
Limiting Speed (nG): 14600 rpm
Reference Speed (nϑr): 8800 rpm
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
FAG Tapered Roller Bearings Guide
Product Description

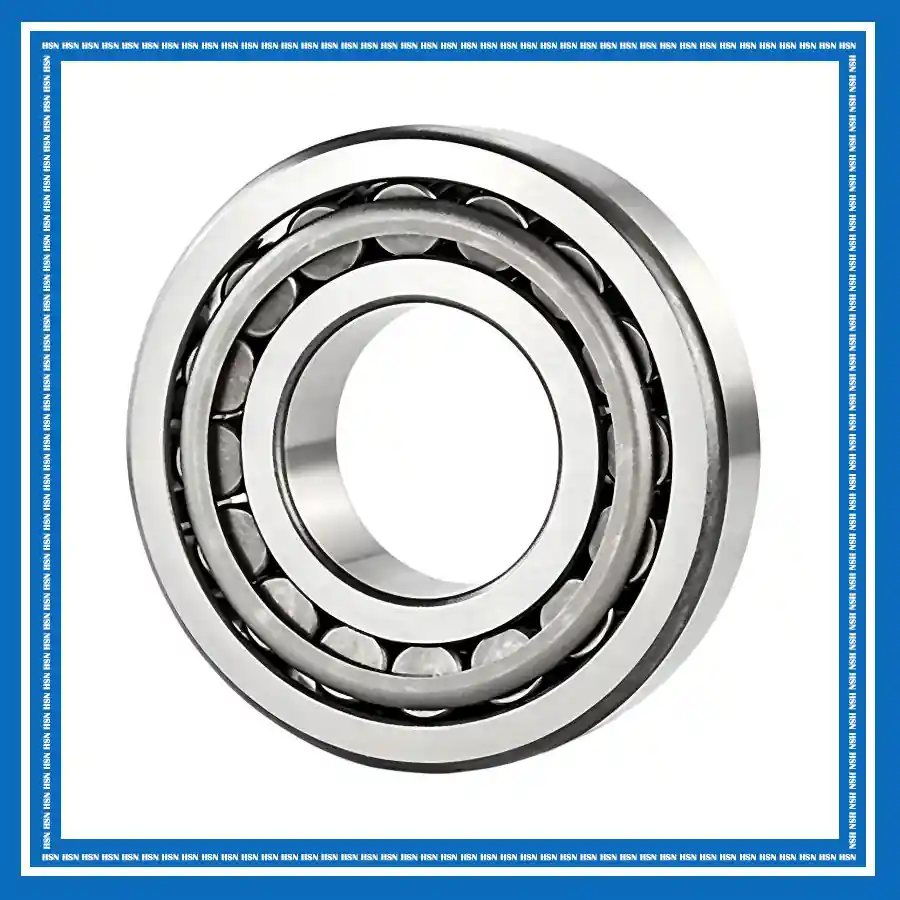

The T2ED022 FAG single row tapered roller bearing consists of an inner ring, outer ring, tapered rollers, and a cage. Its tapered roller and raceway geometry provides high radial load capacity, axial load capability in one direction, and high rigidity. The design also promotes effective load distribution and stable operation under combined radial and axial loads.
The T2ED022 bearing is suitable for construction machinery, agricultural machinery, material handling, industrial transmissions, and general manufacturing. Its combined load capacity and rigid construction provide dependable support under changing operating loads, making it suitable for a broad range of industrial applications.
