Specifications
Availability: 100 PCS
Brand: HSN/ Timken/ OEM
Bearing Number: T7020F.T7020
Double Race Inner Ring: T7020F
Single Race Outer Ringr: T7020
Category: Tapered Roller Thrust Bearings
1

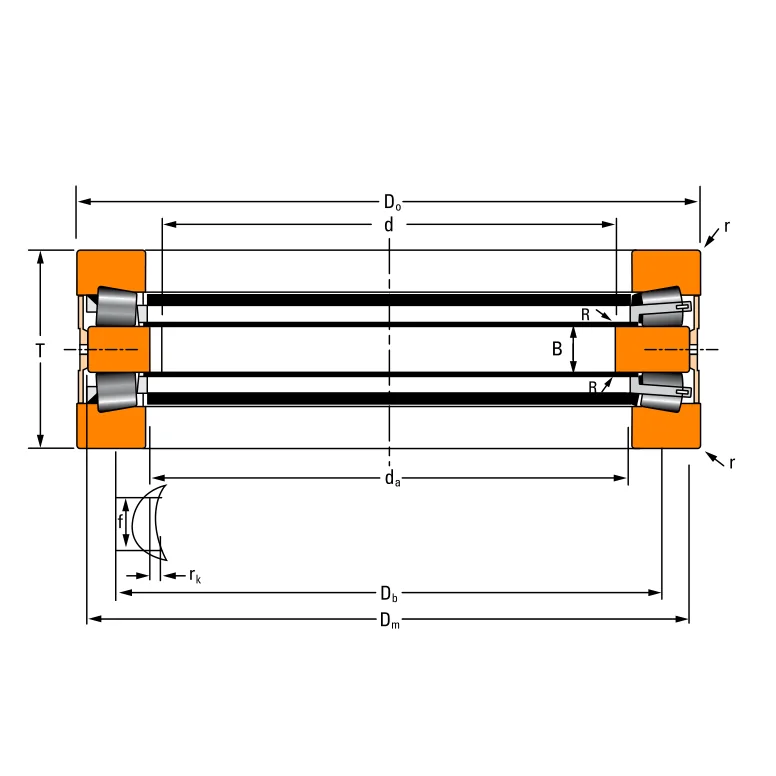

Weight and Dimensions
Bore (d): 180.000 mm 7.0866 in
Outside Diameter (Do): 280.000 mm 11.0236 in
Outside Diameter (Dm): 265.000 mm 10.4330 in
Bearing Width (T): 90.000 mm 3.5433 in
Inner Ring Width: 20.000 mm 0.7874 in
Weight: 20.0 kg 44.0 lbs
Data from Timken (medias)
Dynamic Axial Load Rating – 1M Revs (Ca1): 740 KN 167000 lbf
Dynamic Axial Load Rating – 90M Revs (Ca90): 190 KN 43160 lbf
Static Axial Load Rating (Ca0): 2410 KN 541790 lbf
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
Timken Tapered Roller Thrust Bearings
Product Description
The TIMKEN double-race inner ring T7020F, combined with the matching single-race outer ring T7020, forms a complete double-acting tapered roller thrust bearing assembly. The assembly consists of a central double-race inner ring, two single-race outer rings, two sets of tapered rollers, and an MB cage. Its double-row tapered roller configuration provides high axial load capacity in both directions, while the machined bronze cage helps guide the rollers and maintain stable operation under heavy thrust loads. Designed for demanding metal rolling applications, the complete bearing assembly is suitable for work roll axial support in steel rolling mills and heavy-duty metal processing equipment in the United States industrial market, where reliable bidirectional thrust support and durability are essential.
