T8010DW.T8010F
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ Timken/ OEM
Bearing Number: T8010DW.T8010F
Double Race Inner Ring: T8010DW
Single Race Outer Ringr: T8010F
Category: Tapered Roller Thrust Bearings
1

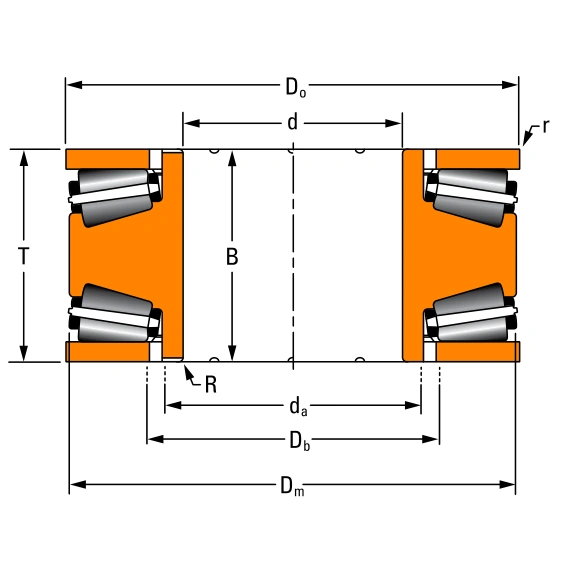

Weight and Dimensions
Bore (d): 203.200 mm 8.0000 in
Outside Diameter (Do): 431.317 mm 16.9810 in
Outside Diameter (Dm): 403.860 mm 15.9000 in
Bearing Width (T): 152.400 mm 6.0000 in
Inner Ring Width: 152.400 mm 6.0000 in
Weight: 158.0 kg 348.0 lbs
Data from Timken (medias)
Dynamic Axial Load Rating – 1M Revs (Ca1): 2850 KN 639100 lbf
Dynamic Axial Load Rating – 90M Revs (Ca90): 740 KN 166000 lbf
Static Axial Load Rating (Ca0): 11900 KN 2670000 lbf
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
Timken Tapered Roller Thrust Bearings
Product Description
The TIMKEN double-race inner ring T8010DW, combined with the matching single-race outer ring T8010F, forms a complete double-acting tapered roller thrust bearing assembly. The assembly consists of a central double-race inner ring, two single-race outer rings, two sets of tapered rollers, and a P-type pin cage. Its double-row tapered roller configuration provides high axial load capacity in both directions, while the pin cage helps guide the rollers and maintain stable operation under heavy thrust loads. Designed for demanding metal rolling applications, the complete bearing assembly is suitable for work roll axial support in steel strip mills, cross-rolling mills, and heavy-duty metal processing equipment in the United States industrial market.
