T8110F.T8110
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ Timken/ OEM
Bearing Number: T8110F.T8110
Double Race Inner Ring: T8110F
Single Race Outer Ringr: T8110
Category: Tapered Roller Thrust Bearings
1

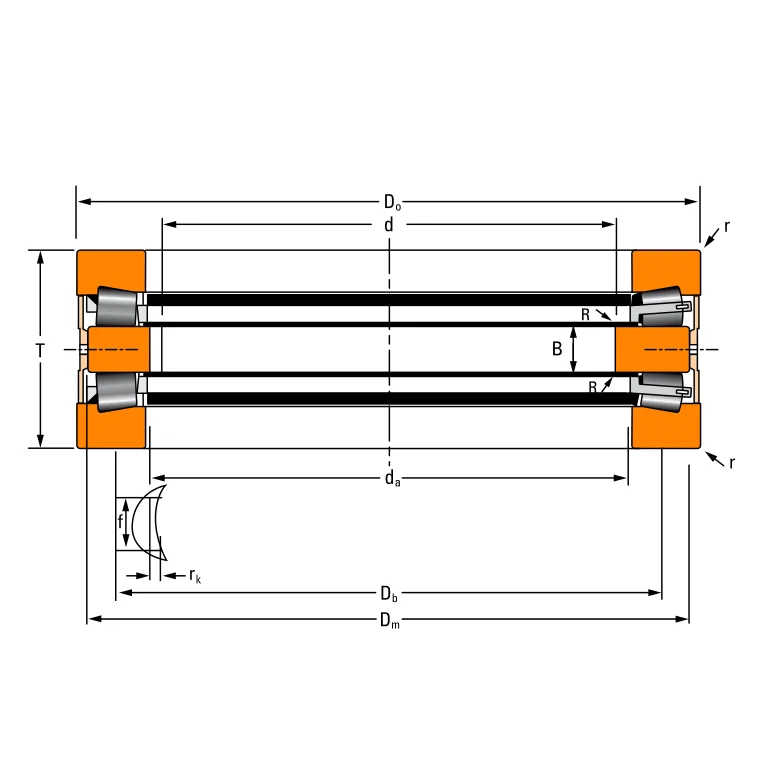

Weight and Dimensions
Bore (d): 220.000 mm 8.6614 in
Outside Diameter (Do): 300.000 mm 11.8110 in
Outside Diameter (Dm): 289.000 mm 11.3770 in
Bearing Width (T): 96.000 mm 3.7795 in
Inner Ring Width: 22.000 mm 0.8661 in
Weight: 19.0 kg 42.0 lbs
Data from Timken (medias)
Dynamic Axial Load Rating – 1M Revs (Ca1): 600 KN 135335 lbf
Dynamic Axial Load Rating – 90M Revs (Ca90): 160 KN 35070 lbf
Static Axial Load Rating (Ca0): 2070 KN 465355 lbf
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
Timken Tapered Roller Thrust Bearings
Product Description
The TIMKEN double-race inner ring T8110F, combined with the matching single-race outer ring T8110, forms a complete double-acting tapered roller thrust bearing assembly. The assembly consists of a central double-race inner ring, two single-race outer rings, two sets of tapered rollers, and an MB cage. Its double-row tapered roller configuration provides high axial load capacity in both directions, while the machined bronze cage helps guide the rollers and maintain stable operation under heavy thrust loads. Designed for demanding metal rolling applications, the complete bearing assembly is suitable for work roll axial support in steel rolling mills and heavy-duty metal processing equipment in the United States industrial market, where reliable bidirectional thrust support and durability are essential.
