TAB-040100
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ Rollway/ OEM
Bearing Number: TAB-040100
Category: Tandem Thrust Roller Bearings
1
Weight and Dimensions
Bore (B): 101.6 mm 4 in
Outside Diameter (D): 254 mm 10 in
Height (H): 141.275 mm 5.562 in
Weight: 38.1 kg 84 lbs
Data from Rollway (medias)
Basic Dynamic Rating (C): 1684480 N 376000 lbf
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
Rollway Tandem Thrust Roller Bearings Guide
Product Description

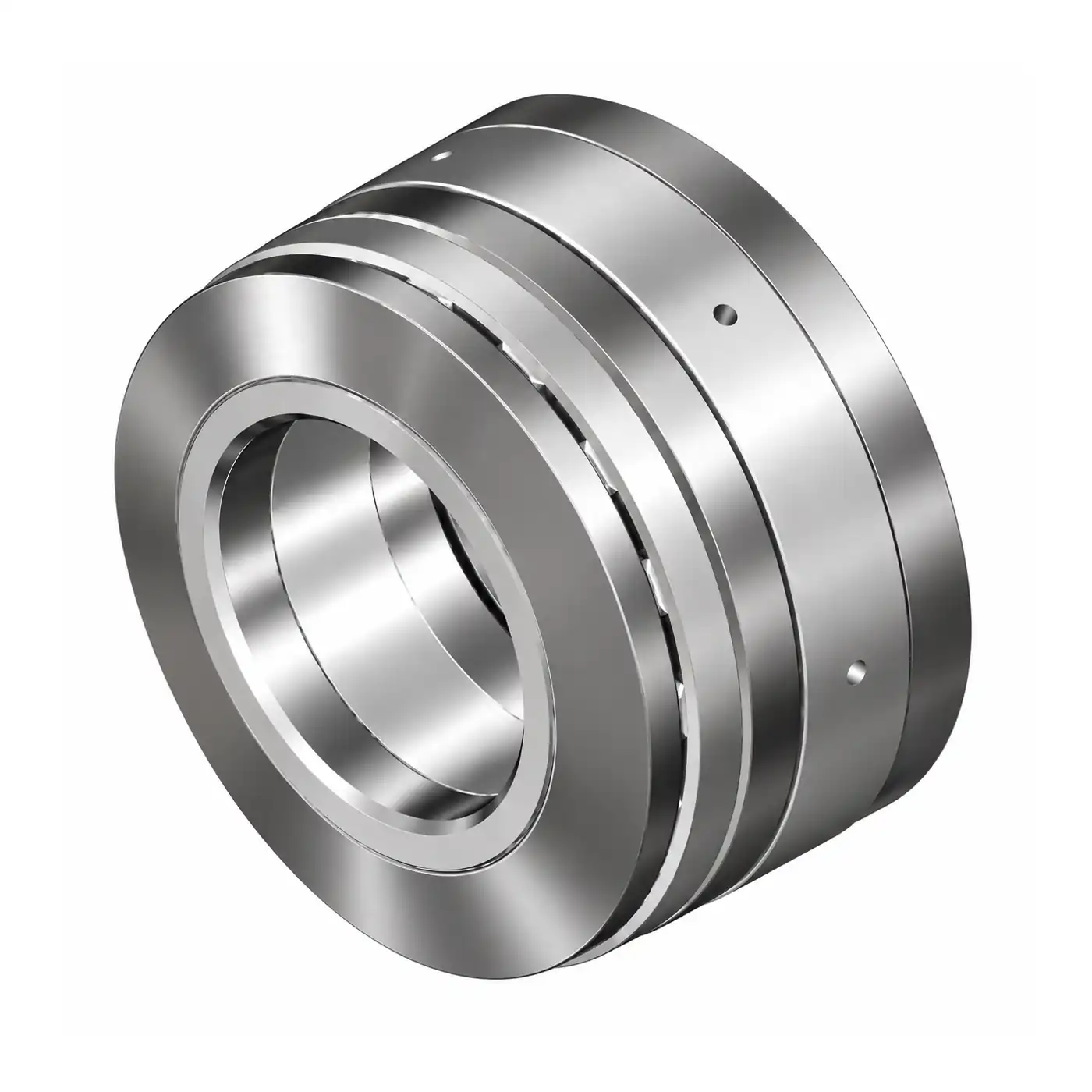

The Rollway TAB-040100 Tandem Thrust Roller Bearing features a multi-stage cylindrical roller design with precision-ground thrust plates, crowned cylindrical rollers, machined brass retainers, and inner and outer compression sleeves. Manufactured from through-hardened or carburized bearing-grade steel, its multi-stage configuration distributes heavy axial loads while maintaining a compact radial design. The bearing provides high axial load capacity, stable load transmission, and reliable performance where radial space is limited. The TAB-040100 bearing is suitable for heavy-duty industrial equipment requiring substantial axial load support, meeting the demanding requirements of the United States industrial market.
