XAB32010X/Y32010X
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 pcs
Brand: HSN/ TIMKEN/ OEM
Bearing Number: XAB32010X/Y32010X
Category: Tapered Roller Bearings
1
Weight and Dimensions
Bore (d): 50.000 mm 1.9685 in
Outer (D): 80.000 mm 3.1496 in
Width (T): 20.000 mm 0.7874 in
Width (B): 20.000 mm 0.7874 in
Width (C): 15.500 mm 0.6102 in
Weight: 0.36 kg
Data from Timken (medias)
Dynamic Radial Load Rating – 1M Revs (C1): 69800 N
Dynamic Radial Load Rating – 90M Revs (C90) : 18100 N
Dynamic Axial Rating – 90M Revs (Ca90): 13100 N
Static Radial Load Rating (C0): 92700 N
e Factor: 0.42
K Factor: 1.38
Y Factor: 1.42
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
Timken Tapered Roller Bearings Guide
Product description

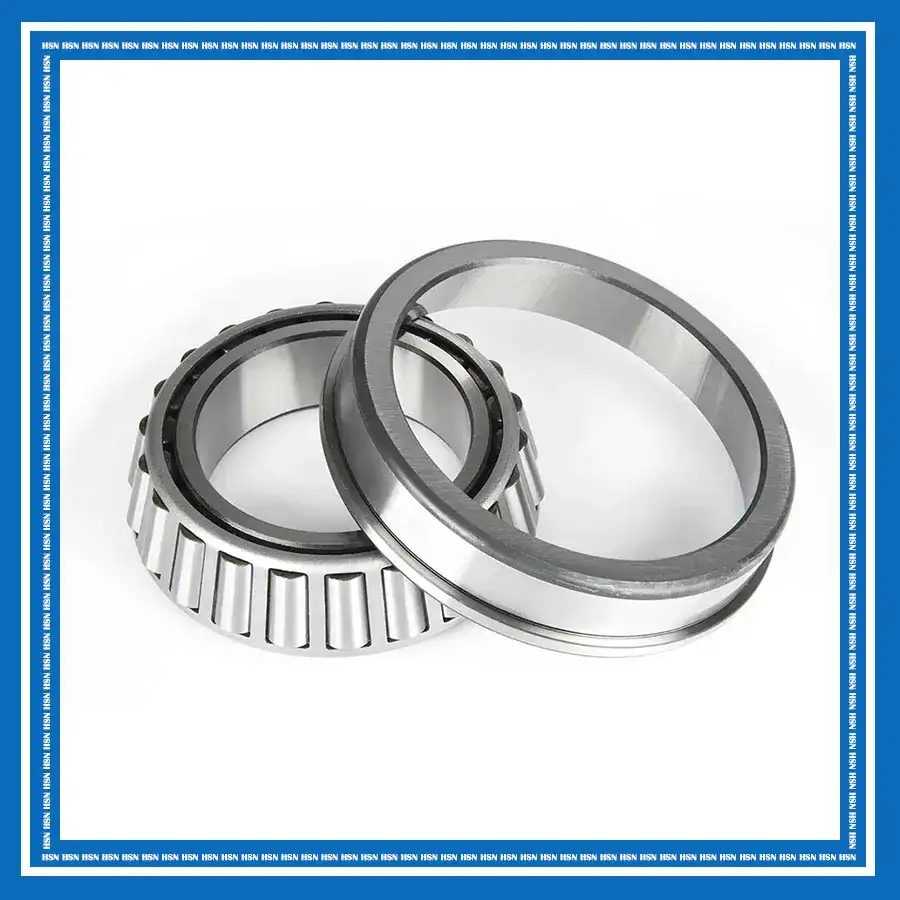

The XAB32010X/Y32010X metric single row tapered roller bearing features a separable design consisting of a single inner ring assembly (cone), a single outer ring (cup), and one row of tapered rollers. This configuration provides reliable radial and axial load support while maintaining high rigidity and smooth running performance. The separable cone and cup structure allows convenient installation, inspection, and replacement, while the optimized tapered roller design ensures effective load distribution and long service life under demanding operating conditions.
The XAB32010X/Y32010X tapered roller bearing is widely used in automotive systems, gearboxes, industrial equipment, agricultural machinery, construction machinery, and other applications where reliable load support, accurate positioning, and durable operation are required.
