XLBH-5 1/8
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ Scheerer/ OEM
Bearing Number: XLBH-5 1/8
Category: Radial Ball Bearings
1
Weight and Dimensions
Bore (d): 130.175 mm 5.125 in
Outside (D): 184.150 mm 7.250 in
Width (B): 25.400 mm 1.000 in
Downloads & Links
Scheerer Radial Ball Bearings Guide
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Product Description

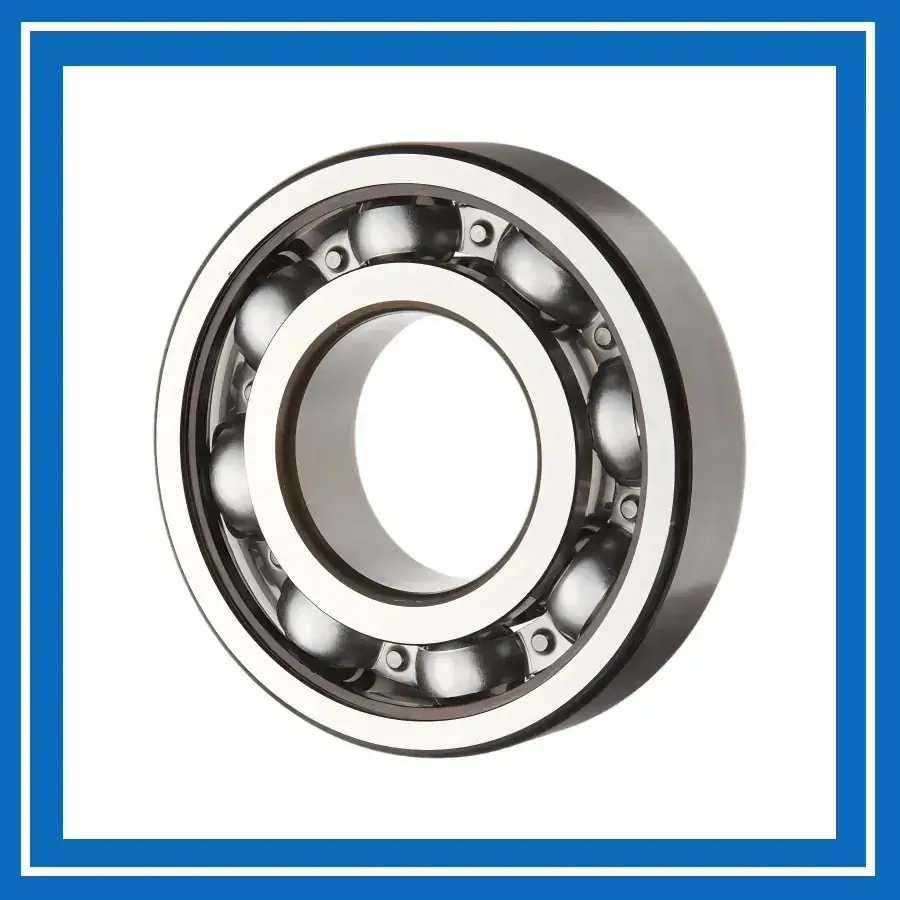

The Scheerer Bearings XLBH-5 1/8 Maximum Capacity Ball Bearing features a single-row design with precision-ground inner and outer rings, steel balls, and a machined bronze cage. Its maximum-capacity construction accommodates more balls than a conventional Conrad design, providing higher radial load capacity while maintaining a compact bearing arrangement. The bearing offers reliable radial support and smooth rotation under demanding operating conditions. It is suitable for industrial gearboxes, electric motors, steel mills, and general machinery requiring dependable radial load support. HSN provides replacement bearing solutions for U.S. equipment maintenance, aftermarket sourcing, and OEM applications, with dimensional verification and custom supply options available.
