Why SKF Bearing Cross Reference Should Start with Designation Understanding?
For many bearing buyers, an SKF bearing cross reference is the first step when they need to find an equivalent model, compare brands, or confirm a replacement option. However, a cross reference should not be treated as a simple model name match. A bearing code may look similar across brands, but the actual bearing still needs to be checked by dimensions, clearance, seal type, cage design, lubrication, load condition, and application requirements.
This guide explains how to understand SKF bearing designation logic, using deep groove ball bearings as an example. It also gives a practical SKF bearing cross reference chart for SKF, Timken, FAG, and NTN deep groove ball bearing series. The purpose is to help buyers use cross reference information as a technical starting point before final confirmation.
Table of contents
SKF Designation System: What Numbers and Letters Mean
SKF bearing designations usually include a basic designation and additional prefixes or suffixes. The basic designation normally identifies the bearing type, dimension series, and bore size. Prefixes and suffixes provide extra information about design variations, seals, shields, clearance, cage type, lubrication, or other technical features.

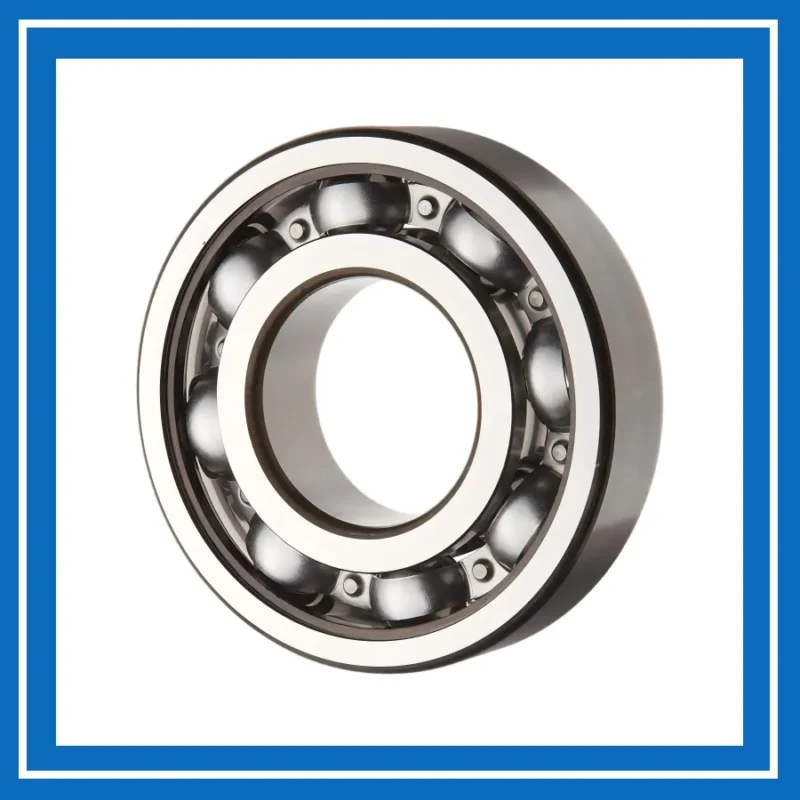

For deep groove ball bearings, the number series is especially important. Buyers often see codes such as 6005, 6205, 6305, or 6405. These are not random numbers. They help identify the bearing family and size series.
- 60, 62, 63, and 64 indicate different deep groove ball bearing series.
- The following bore code helps identify the inner diameter.
- Suffixes such as shields, seals, or clearance marks describe design features.
- Similar numbers across brands can provide a reference, but they do not remove the need for technical checking.
For example, a code such as 6205-2Z/C3 can be read in a practical way:
- 62 refers to the bearing series.
- 05 refers to the bore code.
- 2Z generally indicates shields on both sides.
- C3 indicates greater internal clearance than normal clearance.
This type of reading helps buyers understand what they are comparing. However, suffix rules can vary between bearing brands. Therefore, the same basic number does not always mean the same full technical configuration.
SKF Cross Reference Chart for Deep Groove Ball Bearings
The following chart is a reference starting point for common deep groove ball bearing series. It should be used for initial comparison, not as final confirmation for direct interchange.
| SKF Series | Timken Reference Series | FAG Reference Series | NTN Reference Series | Buyer Check Points |
|---|---|---|---|---|
| 60 Series | 60 Series | 60 Series | 60 Series | Confirm bore, outside diameter, width, clearance, seals or shields |
| 62 Series | 62 Series | 62 Series | 62 Series | Check load requirement, speed, lubrication, and operating temperature |
| 63 Series | 63 Series | 63 Series | 63 Series | Confirm radial load, housing space, clearance, and cage type |
| 64 Series | 64 Series | 64 Series | 64 Series | Check larger section size, load condition, and installation space |
This type of SKF bearing cross reference chart is useful for buyers who already have an original model number and want to compare common brand series. However, the chart only shows the series relationship. It does not confirm that every detailed model, suffix, material, cage, clearance, or sealing structure is the same.
Before ordering, buyers should confirm:
- Bearing dimensions
- Internal clearance
- Seal or shield type
- Cage type
- Lubrication requirement
- Load direction and load level
- Working speed
- Temperature range
- Installation position
- Quantity and delivery requirement
- Inspection requirement before shipment
When SKF Bearing Interchange Needs More Than a Chart
SKF bearing interchange research is useful when a buyer needs to solve a sourcing problem. For example, the original brand may have a long delivery time, the model may be difficult to find, or the customer may need a cost-performance replacement option after technical confirmation.
However, a bearing is not selected by model number alone. Two bearings with similar model numbers can perform differently if the clearance, seal design, cage, lubrication, or material requirement is different. This is especially important for motors, gearboxes, pumps, mining equipment, steel plants, cement plants, agricultural machinery, and repair projects.
For maintenance buyers, the safest method is to provide the original bearing photo, model number, installation position, and working condition. For distributors, it is also useful to provide the target market, common customer applications, and expected order quantity. For OEM customers, drawings and technical requirements are more important than a simple model reference.
How HSN Supports Bearing Replacement and Customization
HSN Bearing Group supports industrial bearing supply, bearing replacement discussions, and customization communication based on model numbers, drawings, samples, and working conditions. HSN is an independent bearing supplier and technical service provider, not an official SKF distributor or authorized SKF replacement provider.
For buyers comparing international bearing brands, HSN can help review model references and discuss suitable supply options after technical confirmation. This is especially useful when:
- Original brand bearings have long delivery times.
- Old models are difficult to source.
- Standard stock structures do not meet working conditions.
- The buyer needs a cost-performance replacement option.
- The project requires small-batch or non-standard customization.
- The customer wants quality inspection support before shipment.
HSN maintains 2000+ tons of bearing inventory, mainly covering spherical roller bearings, cylindrical roller bearings, tapered roller bearings, thrust roller bearings, deep groove ball bearings, angular contact ball bearings, and thrust ball bearings. For customized projects, HSN can discuss rolling bearings from 5 mm inner diameter to 2000 mm outer diameter, as well as some sliding bearing requirements, depending on drawings, samples, quantity, structure, and application conditions.
HSN Quality Control Before Shipment
A bearing cross reference can help buyers find a possible direction, but quality control helps reduce procurement risk. Before shipment, HSN focuses on key inspection items such as dimensional tolerance, hardness, and clearance.
According to customer requirements, additional checks can also be discussed, including rotation accuracy, vibration range, noise range, material verification, ultrasonic flaw detection, appearance inspection, and packaging inspection.
HSN has an in-house quality inspection center with equipment such as spectrometers, hardness testers, metallographic microscopes, vision measuring instruments, ultrasonic flaw detectors, vibration testers, and handheld inspection tools. This allows buyers to discuss inspection requirements before placing an order, instead of only checking problems after goods arrive.
For brand reference and replacement projects, this process is important. It helps confirm whether the selected bearing matches the expected dimensions, structure, and working condition before shipment.
What to Send HSN for Technical Confirmation
To make SKF bearing cross reference discussions more accurate, buyers should provide as much technical information as possible. A model number is useful, but it is not always enough.
Please send:
- Original brand and model number
- Bearing photos or sample photos
- Drawing or measured dimensions
- Bore, outside diameter, and width
- Clearance requirement
- Seal or shield type
- Cage type
- Material or hardness requirement
- Lubrication requirement
- Application and installation position
- Working speed, load, and temperature
- Quantity and delivery time requirement
- Required inspection items before shipment
With this information, HSN can help review the model reference, check possible supply options, and discuss whether stock supply, replacement support, or customization is more suitable.
Remarks
Regarding detailed SKF bearing models except the above-listed series, please contact HSN for technical confirmation. For other types of bearings, including spherical roller bearings, cylindrical roller bearings, tapered roller bearings, thrust bearings, angular contact ball bearings, and non-standard bearings, please contact HSN with the model number, drawing, sample, or working condition.
This article is based on independent analysis of publicly available technical information and industry understanding, and aims to provide knowledge sharing. All brand names and trademarks mentioned in this article belong to their respective owners. HSN Bearing Group is an independent bearing supplier and technical service provider.
