19143 / 19268-B
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 pcs
Brand: HSN/ TIMKEN/ OEM
Bearing Number: 19143 / 19268-B
Category: Tapered Roller Bearings
1
Weight and Dimensions
Bore (d): 36.512 mm 1.4375 in
Outer (D): 68.262 mm 2.6875 in
Width (T1): 7.539 mm 0.2968 in
Width (B): 16.520 mm 1.4550 in
Width (C): 11.908 mm 0.4688 in
Weight: 0.27 kg
Data from Timken (medias)
Dynamic Radial Load Rating – 1M Revs (C1): 50700 N
Dynamic Radial Load Rating – 90M Revs (C90) : 13100 N
Dynamic Axial Rating – 90M Revs (Ca90): 10000 N
Static Radial Load Rating (C0): 57800 N
e Factor: 0.44
K Factor: 1.31
Y Factor: 1.35
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
Timken Tapered Roller Bearings Guide
Product description

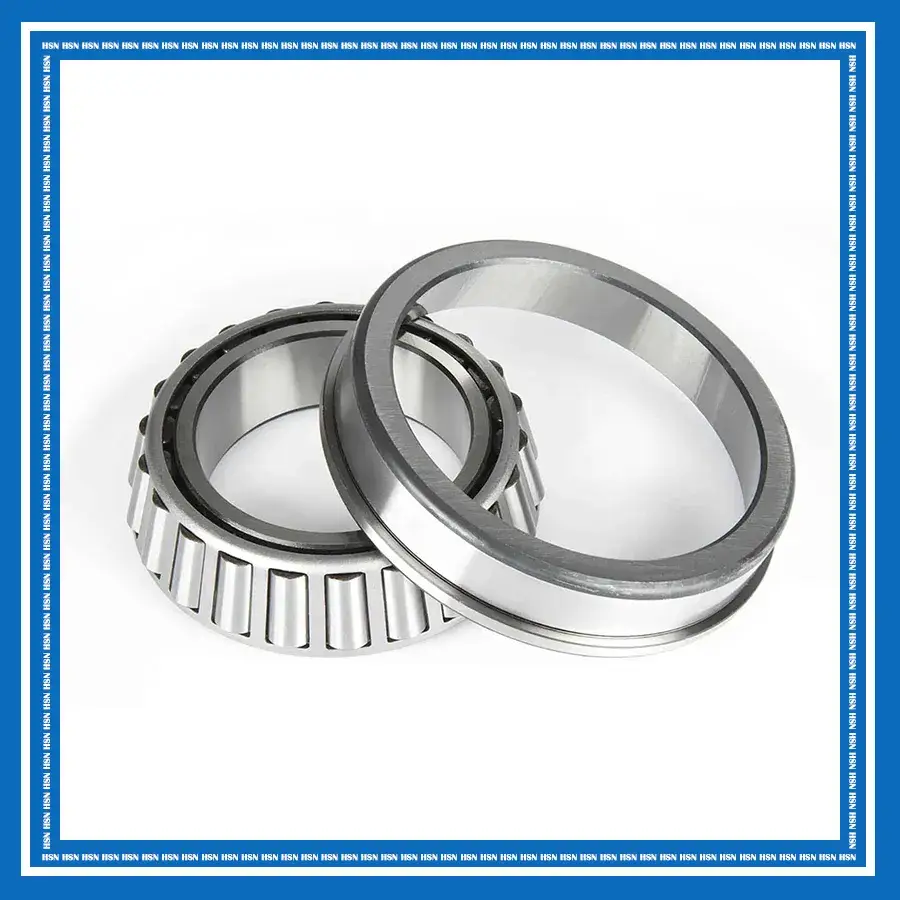

The 19143 / 19268-B Timken TSF tapered roller bearing features a single-row tapered roller bearing design with a flanged outer ring. The flange provides accurate axial positioning of the outer ring within the housing, while through-bored housing designs help achieve precise alignment of the bearing seats. This configuration simplifies installation and improves mounting stability in applications requiring reliable positioning and consistent operating performance.
The 19143 / 19268-B TSF bearing is widely used in industrial equipment, gearboxes, agricultural machinery, construction machinery, and other applications where accurate bearing location, reliable load support, and long service life are required.
