22314-E1-XL-T41A

Specifications

Availability: 100 PCS

Brand: HSN/ FAG/ OEM

Bearing Number: 22314-E1-XL-T41A

Category: Spherical Roller Bearings

1

Weight and Dimensions

Bore (d): 70 mm

Outer (D): 150 mm

Width (B): 51 mm

Weight: 4.21 kg

Data from Schaeffler (medias)

Basic Dynamic Load Rating, Radial C_r: 390 KN

Basic Static Load Rating, Radial (C_0r): 390 KN

Fatigue Load Limit, Radial (C_ur): 36500 N

Limiting Speed (n_G): 4800 r/min

Reference Speed (n_ϑr): 3700 r/min

Product Properties

Precision: P0, P6, P5

Hardness: HRC58-62

Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.

Cage Material: Brass, Steel

Certificate: ISO9001:2015

1

Downloads & Links

FAG Spherical Roller Bearings Guide

Product Description

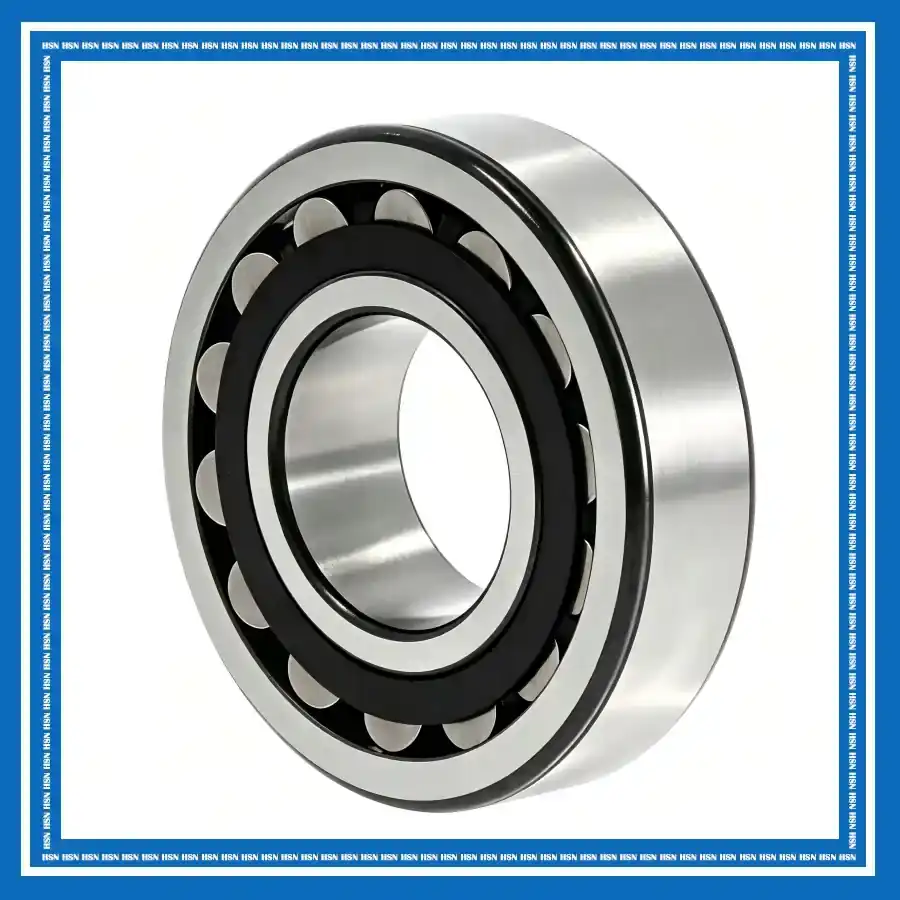

The 22314-E1-XL-T41A FAG spherical roller bearing consists of an inner ring, outer ring, two rows of spherical rollers, and cages. Its self-aligning design accommodates angular misalignment while supporting high radial loads and axial loads in both directions. The E1 design provides increased load carrying capacity, while X-life improves operating performance and service life. In addition, the T41A design is specially engineered for vibratory machinery, providing increased radial internal clearance and tighter dimensional tolerances for demanding vibration conditions.

The 22314-E1-XL-T41A bearing is particularly suitable for mining and quarrying, mineral processing, cement production, material handling, and other industries using vibratory machinery. Its high load capacity and vibration-resistant design provide reliable performance under heavy loads, centrifugal forces, vibration, and changing operating conditions. FAG specifically lists the 223..-E1-XL-T41A series for vibratory machinery and screen applications.
