22317-E1-XL-K-T41A+H2317

Specifications

Availability: 100 PCS

Brand: HSN/ FAG/ OEM

Bearing Number: 22317-E1-XL-K-T41A+H2317

Category: Spherical Roller Bearings

1

Weight and Dimensions

Bore (d): 85 mm

Outer (D): 180 mm

Width (B): 60 mm

Weight: 8.57 kg

Data from Schaeffler (medias)

Basic Dynamic Load Rating, Radial C_r: 540 KN

Basic Static Load Rating, Radial (C_0r): 560 KN

Fatigue Load Limit, Radial (C_ur): 49500 N

Limiting Speed (n_G): 4100 r/min

Reference Speed (n_ϑr): 3200 r/min

Product Properties

Precision: P0, P6, P5

Hardness: HRC58-62

Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.

Cage Material: Brass, Steel

Certificate: ISO9001:2015

1

Downloads & Links

FAG Spherical Roller Bearings Guide

Product Description

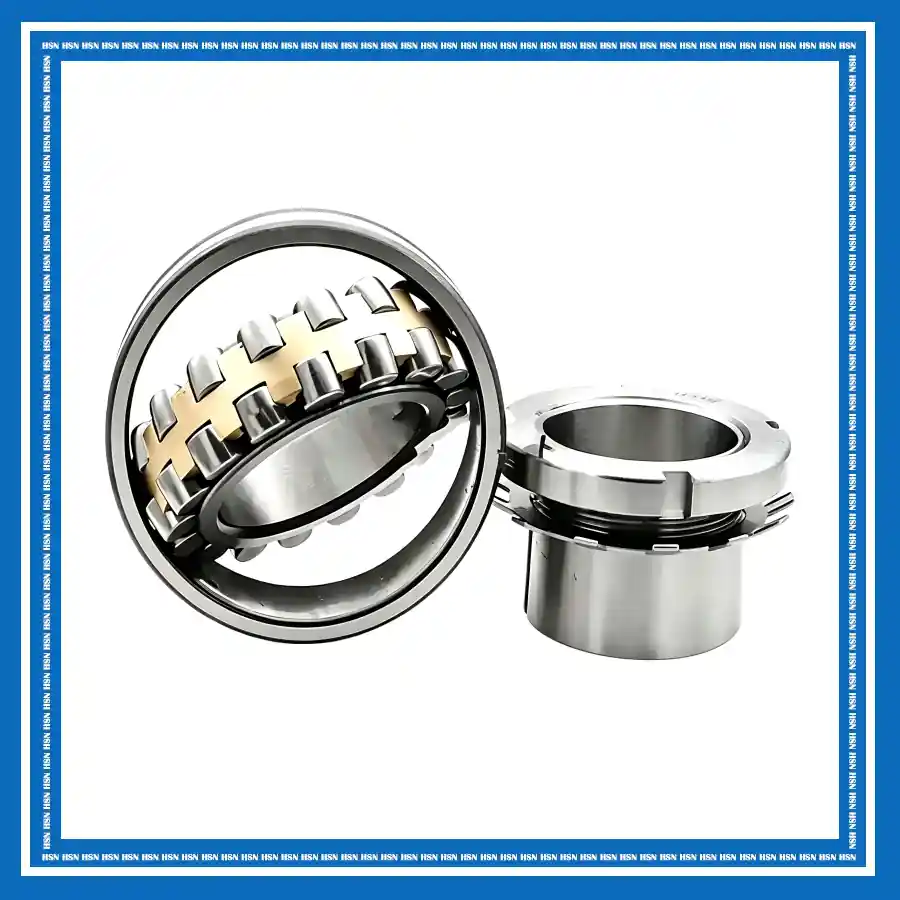

The 22317-E1-XL-K-T41A+H2317 FAG spherical roller bearing consists of an inner ring, outer ring, two rows of spherical rollers, cages, and an adapter sleeve. Its self-aligning design accommodates angular misalignment while supporting high radial loads and axial loads in both directions. The E1 design provides high load carrying capacity, while X-life improves operating performance and service life. In addition, the T41A design is optimized for vibratory machinery, while the K tapered bore works with the H2317 adapter sleeve, allowing secure mounting on cylindrical shafts.

The 22317-E1-XL-K-T41A+H2317 bearing is particularly suitable for mining and quarrying, mineral processing, cement production, material handling, and other industries using vibratory machinery. Its high load capacity, self-aligning capability, and vibration-optimized construction support stable operation under heavy loads, shock loads, radial acceleration, and continuous vibration. The adapter sleeve also provides a practical mounting solution for cylindrical shafts.
