22320-E1-XL-K-T41A
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ FAG/ OEM
Bearing Number: 22320-E1-XL-K-T41A
Category: Spherical Roller Bearings
1
Weight and Dimensions
Bore (d): 100 mm
Outer (D): 215 mm
Width (B): 73 mm
Weight: 13 kg
Data from Schaeffler (medias)
Basic Dynamic Load Rating, Radial Cr: 810 KN
Basic Static Load Rating, Radial (C0r): 920 KN
Fatigue Load Limit, Radial (Cur): 75000 N
Limiting Speed (nG): 3300 r/min
Reference Speed (nϑr): 2380 r/min
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
FAG Spherical Roller Bearings Guide
Product Description

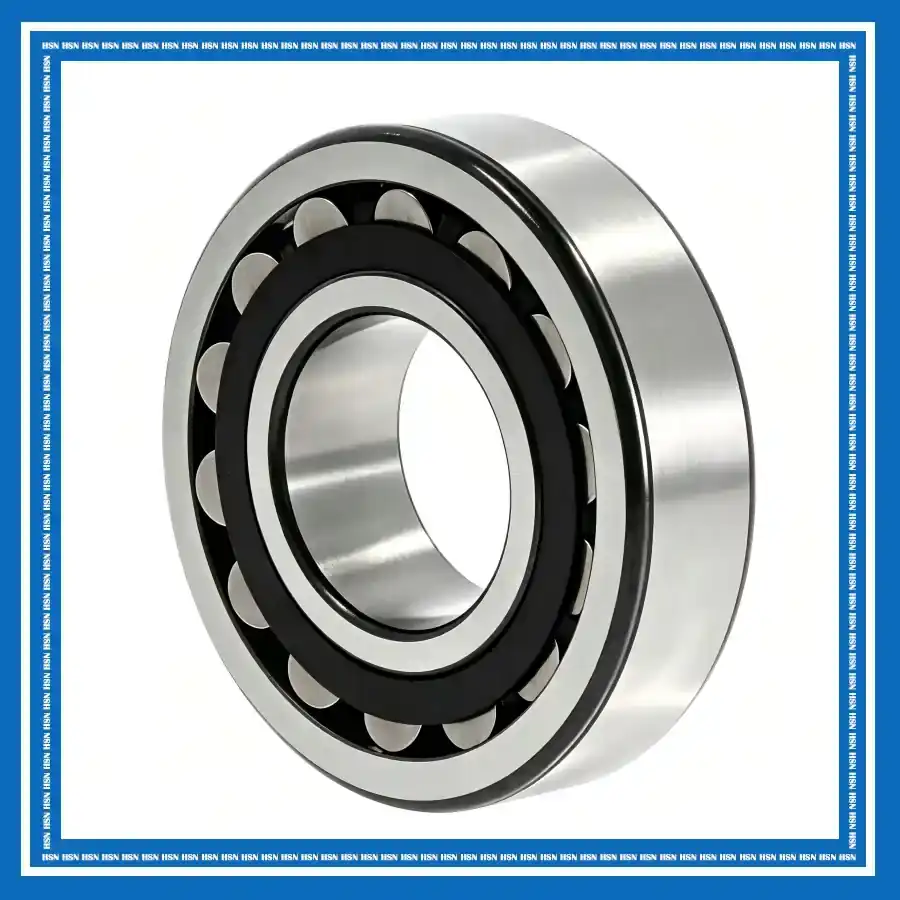

The 22320-E1-XL-K-T41A FAG spherical roller bearing consists of an inner ring, outer ring, two rows of spherical rollers, and cages. Its self-aligning design accommodates angular misalignment while supporting high radial loads and axial loads in both directions. The E1 design provides high load carrying capacity, while X-life improves operating performance and service life. In addition, the T41A design is optimized for vibratory machinery, and the K tapered bore has a 1:12 taper, providing flexible mounting options.
The 22320-E1-XL-K-T41A bearing is particularly suitable for mining and quarrying, mineral processing, cement production, material handling, and other industries using vibratory machinery. Its high load capacity, self-aligning capability, and vibration-optimized design make it suitable for heavy loads, centrifugal forces, continuous vibration, and alignment deviations.
