22332-BE-XL-JPA-T41A
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ FAG/ OEM
Bearing Number: 22332-BE-XL-JPA-T41A
Category: Spherical Roller Bearings
1
Weight and Dimensions
Bore (d): 160 mm
Outer (D): 340 mm
Width (B): 114 mm
Weight: 48.4 kg
Data from Schaeffler (medias)
Basic Dynamic Load Rating, Radial Cr: 1680 KN
Basic Static Load Rating, Radial (C0r): 1990 KN
Fatigue Load Limit, Radial (Cur): 157000 N
Limiting Speed (nG): 2250 r/min
Reference Speed (nϑr): 1420 r/min
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
FAG Spherical Roller Bearings Guide
Product Description

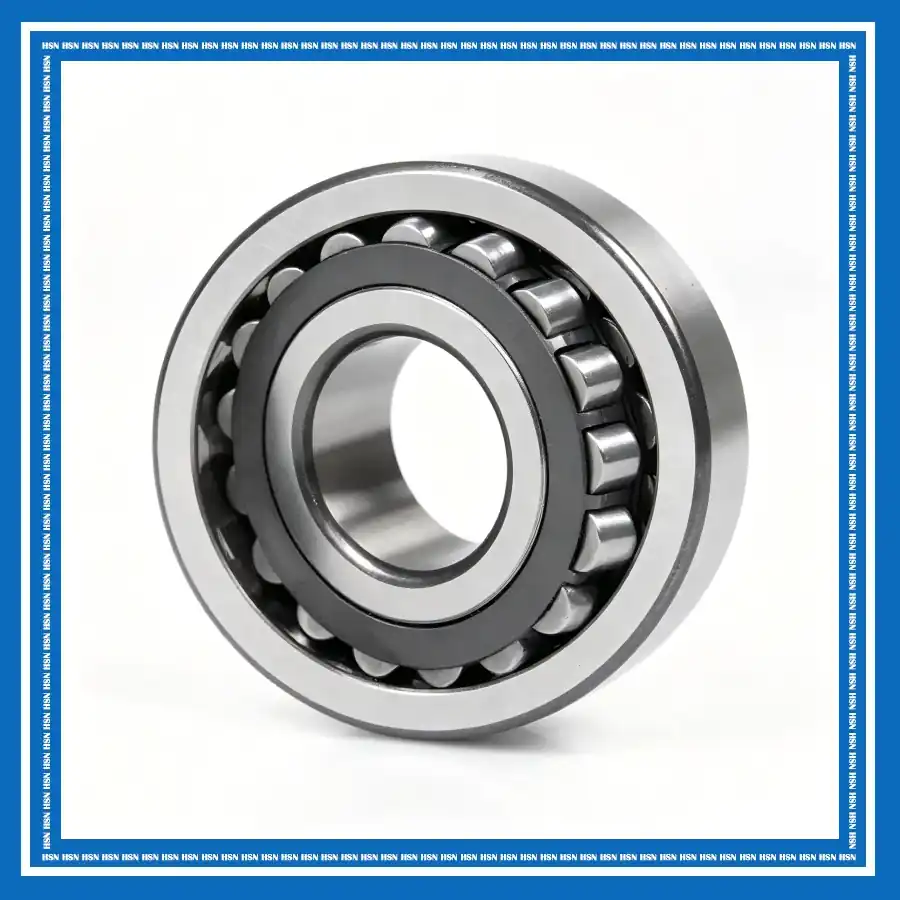

The 22332-BE-XL-JPA-T41A FAG spherical roller bearing consists of an inner ring, outer ring, two rows of spherical rollers, and a sheet steel cage. Its self-aligning design accommodates angular misalignment while supporting high radial loads and axial loads in both directions. The BE design provides high load carrying capacity, while X-life improves operating performance and service life. In addition, the JPA sheet steel cage provides stable roller guidance, while the T41A design is optimized for vibratory machinery and demanding vibration conditions.
The 22332-BE-XL-JPA-T41A bearing is particularly suitable for mining and quarrying, mineral processing, cement production, material handling, and other industries using vibratory machinery. Its high load capacity, self-aligning capability, and vibration-optimized construction support stable operation under heavy loads, radial acceleration, shock loads, and continuous vibration.
