22332-BE-XL-K-JPA-T41A+AH2332G

Specifications

Availability: 100 PCS

Brand: HSN/ FAG/ OEM

Bearing Number: 22332-BE-XL-K-JPA-T41A+AH2332G

Category: Spherical Roller Bearings

1

Weight and Dimensions

Bore (d): 160 mm

Outer (D): 340 mm

Width (B): 114 mm

Weight: 51.56 kg

Data from Schaeffler (medias)

Basic Dynamic Load Rating, Radial C_r: 1680 KN

Basic Static Load Rating, Radial (C_0r): 1990 KN

Fatigue Load Limit, Radial (C_ur): 157000 N

Limiting Speed (n_G): 2250 r/min

Reference Speed (n_ϑr): 1420 r/min

Product Properties

Precision: P0, P6, P5

Hardness: HRC58-62

Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.

Cage Material: Brass, Steel

Certificate: ISO9001:2015

1

Downloads & Links

FAG Spherical Roller Bearings Guide

Product Description

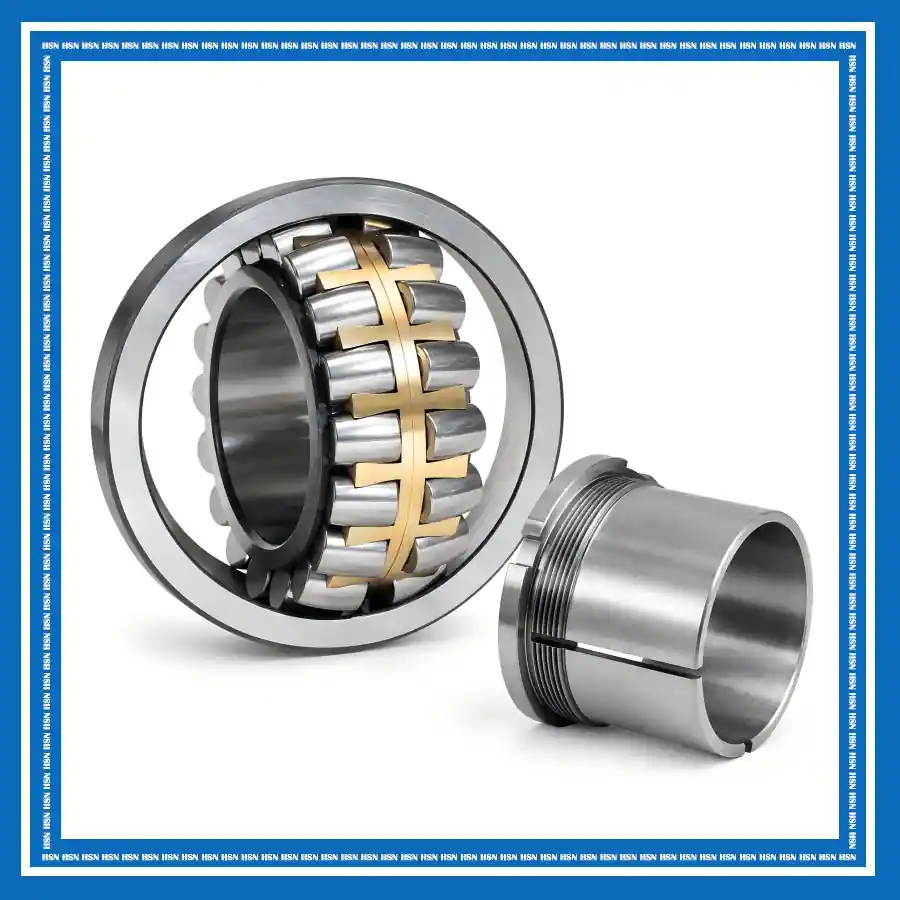

The 22332-BE-XL-K-JPA-T41A+AH2332G FAG spherical roller bearing consists of an inner ring, outer ring, two rows of spherical rollers, a sheet steel cage, and a withdrawal sleeve. Its self-aligning design accommodates angular misalignment while supporting high radial loads and axial loads in both directions. The BE design provides high load carrying capacity, while X-life improves operating performance and service life. In addition, the JPA sheet steel cage provides stable roller guidance, while the T41A design is optimized for vibratory machinery and severe vibration conditions. The K tapered bore works with the AH2332G withdrawal sleeve, allowing secure mounting on cylindrical shafts and facilitating later dismounting.

The 22332-BE-XL-K-JPA-T41A+AH2332G bearing is particularly suitable for mining and quarrying, mineral processing, cement production, material handling, and other industries using vibratory machinery. Its high load capacity, self-aligning capability, and vibration-optimized construction support heavy loads, radial acceleration, shock loads, and continuous vibration. Meanwhile, the withdrawal sleeve provides a practical solution for bearing mounting, dismounting, and maintenance on cylindrical shafts.
