22348-BEA-XL-K-MB1+H2348X

Specifications

Availability: 100 PCS

Brand: HSN/ FAG/ OEM

Bearing Number: 22348-BEA-XL-K-MB1+H2348X

Category: Spherical Roller Bearings

1

Weight and Dimensions

Bore (d): 240 mm

Outer (D): 500 mm

Width (B): 155 mm

Weight: 168.9 kg

Data from Schaeffler (medias)

Basic Dynamic Load Rating, Radial C_r: 3200 KN

Basic Static Load Rating, Radial (C_0r): 4050 KN

Fatigue Load Limit, Radial (C_ur): 305000 N

Limiting Speed (n_G): 1510 r/min

Reference Speed (n_ϑr): 830 r/min

Product Properties

Precision: P0, P6, P5

Hardness: HRC58-62

Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.

Cage Material: Brass, Steel

Certificate: ISO9001:2015

1

Downloads & Links

FAG Spherical Roller Bearings Guide

Product Description

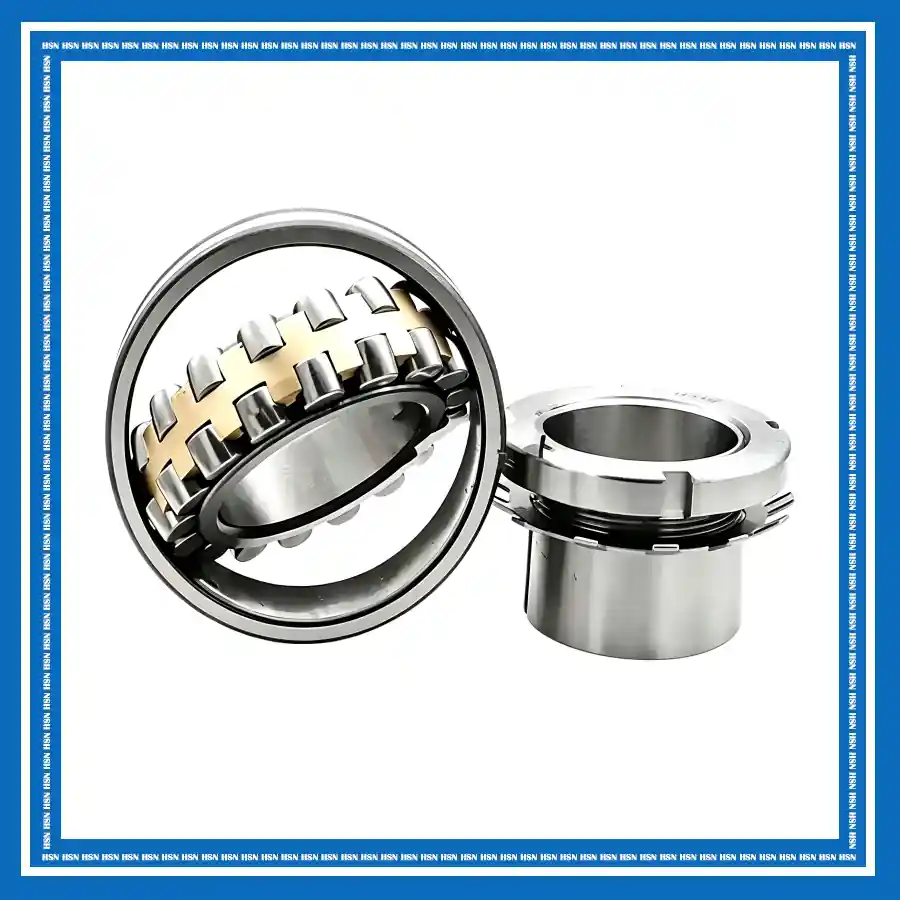

The 22348-BEA-XL-K-MB1+H2348X FAG spherical roller bearing consists of an inner ring, outer ring, two rows of spherical rollers, a solid brass cage, and an adapter sleeve. Its self-aligning design accommodates angular misalignment and shaft deflection while supporting high radial loads and axial loads in both directions. The BEA design incorporates a floating rib washer and two fixed outer ribs, while X-life improves operating performance and service life. In addition, the MB1 single-piece solid brass cage provides robust roller guidance, while the K tapered bore has a 1:12 taper and works with the H2348X adapter sleeve for secure mounting on cylindrical shafts.

The 22348-BEA-XL-K-MB1+H2348X bearing is suitable for mining and cement, steel and metallurgy, paper machinery, material handling, power generation, and heavy industrial equipment. Its high load capacity, self-aligning capability, and robust brass cage support demanding operating conditions. Meanwhile, the adapter sleeve provides a practical mounting solution for cylindrical shafts.
