230/800-K-MB+H30/800-HG

Specifications

Availability: 100 PCS

Brand: HSN/ FAG/ OEM

Bearing Number: 230/800-K-MB+H30/800-HG

Category: Spherical Roller Bearings

1

Weight and Dimensions

Bore (d): 800 mm

Outer (D): 1150 mm

Width (B): 258 mm

Weight: 1188.6 kg

Data from Schaeffler (medias)

Basic Dynamic Load Rating, Radial C_r: 9300 KN

Basic Static Load Rating, Radial (C_0r): 21200 KN

Fatigue Load Limit, Radial (C_ur): 1420000 N

Limiting Speed (n_G): 530 r/min

Reference Speed (n_ϑr): 280 r/min

Product Properties

Precision: P0, P6, P5

Hardness: HRC58-62

Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.

Cage Material: Brass, Steel

Certificate: ISO9001:2015

1

Downloads & Links

FAG Spherical Roller Bearings Guide

Product Description

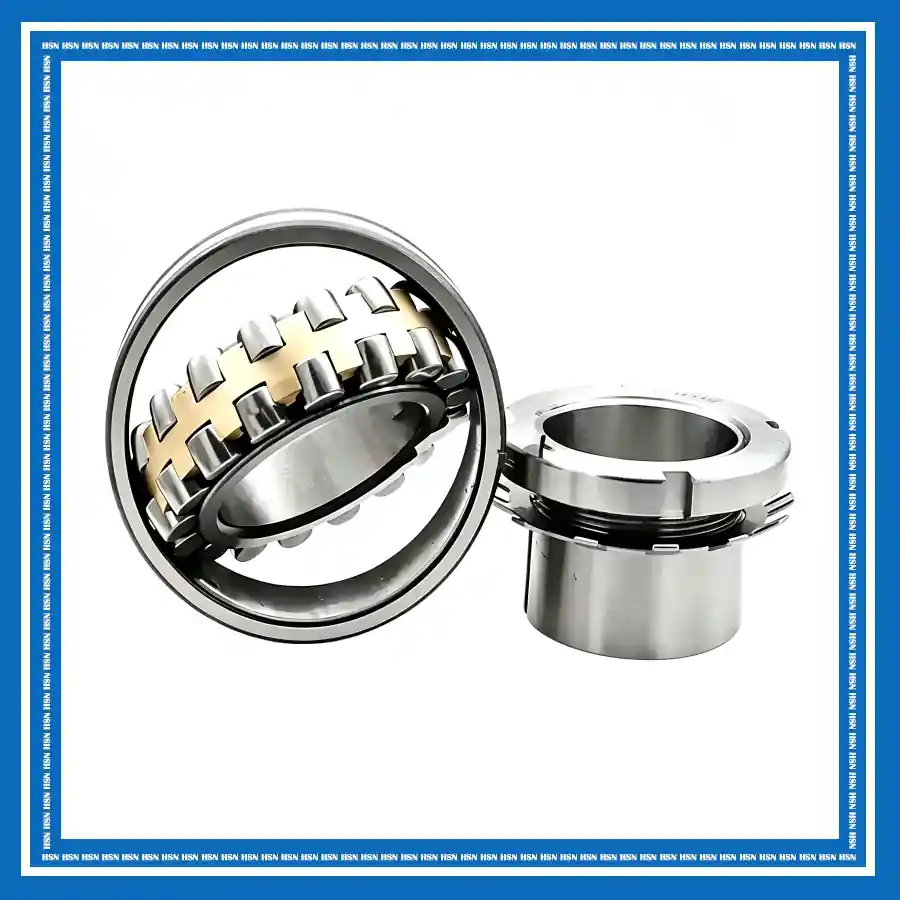

The 230/800-K-MB+H30/800-HG FAG spherical roller bearing consists of an inner ring, outer ring, two rows of spherical rollers, a solid brass cage, and an adapter sleeve. Its self-aligning design accommodates angular misalignment and shaft deflection while supporting high radial loads and axial loads in both directions. The MB two-piece solid brass cage is guided on the inner ring, providing robust roller guidance and high rigidity. In addition, the K tapered bore has a 1:12 taper and works with the H30/800-HG adapter sleeve, allowing secure mounting on cylindrical shafts.

The 230/800-K-MB+H30/800-HG bearing is suitable for paper machinery, steel and metallurgy, industrial transmissions, mining and cement, material handling, and heavy industrial equipment. Its high load capacity, self-aligning capability, and robust brass cage support heavy loads, shaft deflection, and alignment deviations. Meanwhile, the adapter sleeve provides a practical and flexible mounting solution for cylindrical shafts.
