23026-E1-XL-TVPB
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ FAG/ OEM
Bearing Number: 23026-E1-XL-TVPB
Category: Spherical Roller Bearings
1
Weight and Dimensions
Bore (d): 130 mm
Outer (D): 200 mm
Width (B): 52 mm
Weight: 5.6 kg
Data from Schaeffler (medias)
Basic Dynamic Load Rating, Radial Cr: 540 KN
Basic Static Load Rating, Radial (C0r): 730 KN
Fatigue Load Limit, Radial (Cur): 69000 N
Limiting Speed (nG): 3600 r/min
Reference Speed (nϑr): 2600 r/min
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
FAG Spherical Roller Bearings Guide
Product Description

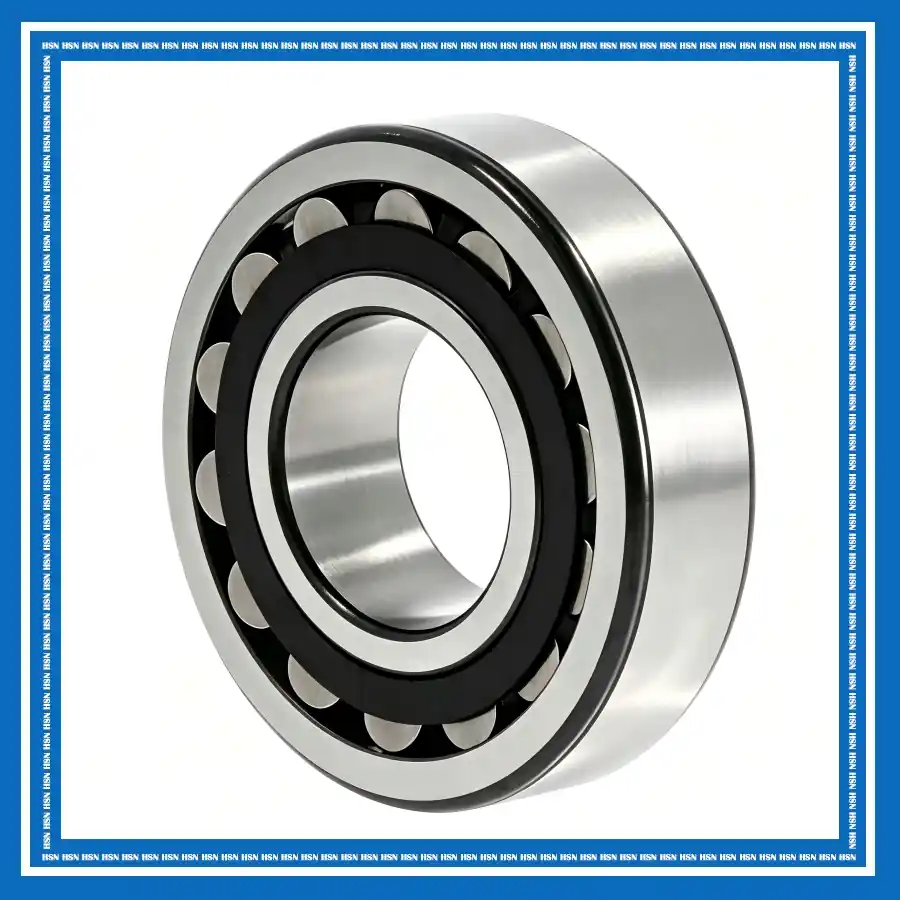

The 23026-E1-XL-TVPB FAG spherical roller bearing consists of an inner ring, outer ring, two rows of symmetrical spherical rollers, and cages. Its self-aligning design compensates for shaft deflection and angular misalignment while supporting high radial loads and axial loads in both directions. The E1 design provides increased load carrying capacity, while X-life improves operating performance and service life. In addition, the TVPB design uses solid glass-fiber reinforced polyamide cages, which offer low mass and low-noise operation.
The 23026-E1-XL-TVPB bearing is suitable for mining and cement, paper machinery, material handling, industrial transmissions, steel and metallurgy, and heavy industrial equipment. Its high load capacity and self-aligning capability make it suitable for applications exposed to heavy loads, vibration, shaft deflection, and alignment deviations.
