23026-E1A-XL-K-M+AHX3026

Specifications

Availability: 100 PCS

Brand: HSN/ FAG/ OEM

Bearing Number: 23026-E1A-XL-K-M+AHX3026

Category: Spherical Roller Bearings

1

Weight and Dimensions

Bore (d): 130 mm

Outer (D): 200 mm

Width (B): 52 mm

Weight: 6.64 kg

Data from Schaeffler (medias)

Basic Dynamic Load Rating, Radial C_r: 540 KN

Basic Static Load Rating, Radial (C_0r): 730 KN

Fatigue Load Limit, Radial (C_ur): 69000 N

Limiting Speed (n_G): 3600 r/min

Reference Speed (n_ϑr): 2600 r/min

Product Properties

Precision: P0, P6, P5

Hardness: HRC58-62

Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.

Cage Material: Brass, Steel

Certificate: ISO9001:2015

1

Downloads & Links

FAG Spherical Roller Bearings Guide

Product Description

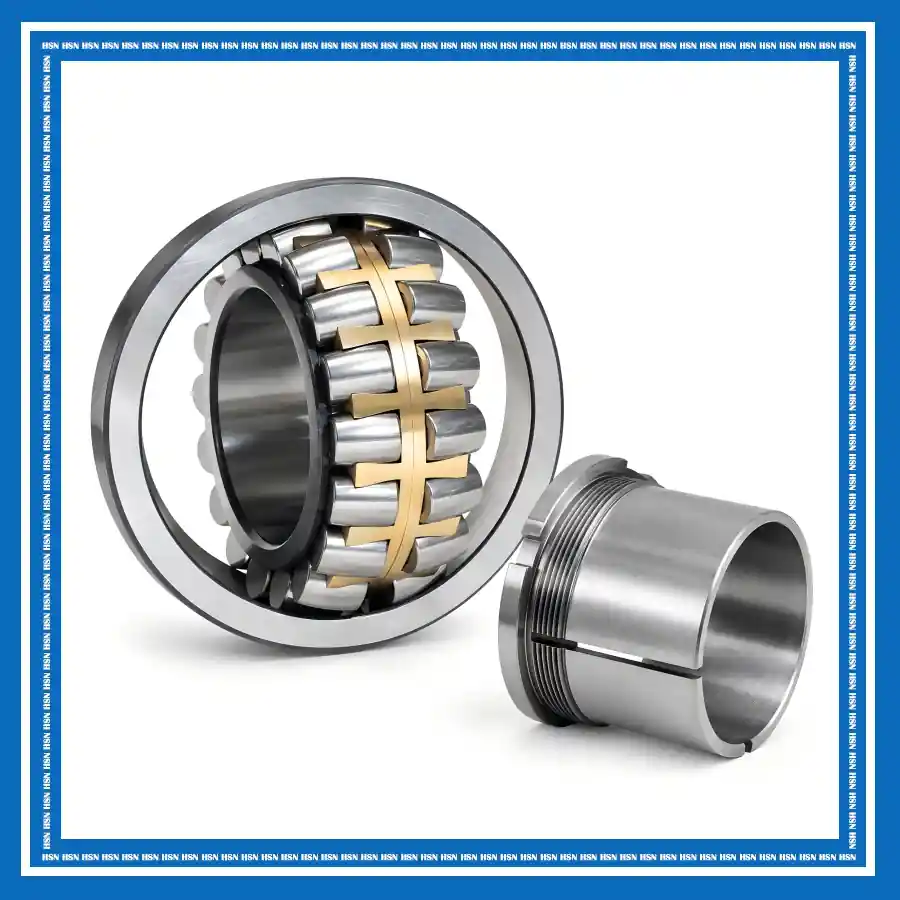

The 23026-E1A-XL-K-M+AHX3026 FAG spherical roller bearing consists of an inner ring, outer ring, two rows of spherical rollers, a solid brass cage, and a withdrawal sleeve. Its self-aligning design accommodates angular misalignment and shaft deflection while supporting high radial loads and axial loads in both directions. The E1A design provides high load carrying capacity, while X-life improves operating performance and service life. In addition, the M solid brass cage provides robust roller guidance, while the K tapered bore works with the AHX3026 withdrawal sleeve, providing secure mounting on cylindrical shafts and facilitating bearing mounting and dismounting.

The 23026-E1A-XL-K-M+AHX3026 bearing is suitable for mining and cement, steel and metallurgy, paper machinery, material handling, industrial transmissions, and heavy industrial equipment. Its high load capacity, self-aligning capability, and robust brass cage support demanding conditions involving heavy loads, shaft deflection, and alignment deviations. Meanwhile, the withdrawal sleeve provides a practical mounting and dismounting solution for cylindrical shafts.
