23028-E1A-XL-K-M+H3028
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ FAG/ OEM
Bearing Number: 23028-E1A-XL-K-M+H3028
Category: Spherical Roller Bearings
1
Weight and Dimensions
Bore (d): 140 mm
Outer (D): 210 mm
Width (B): 53 mm
Weight: 9.3 kg
Data from Schaeffler (medias)
Basic Dynamic Load Rating, Radial Cr: 570 KN
Basic Static Load Rating, Radial (C0r): 800 KN
Fatigue Load Limit, Radial (Cur): 75000 N
Limiting Speed (nG): 3450 r/min
Reference Speed (nϑr): 2390 r/min
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
FAG Spherical Roller Bearings Guide
Product Description

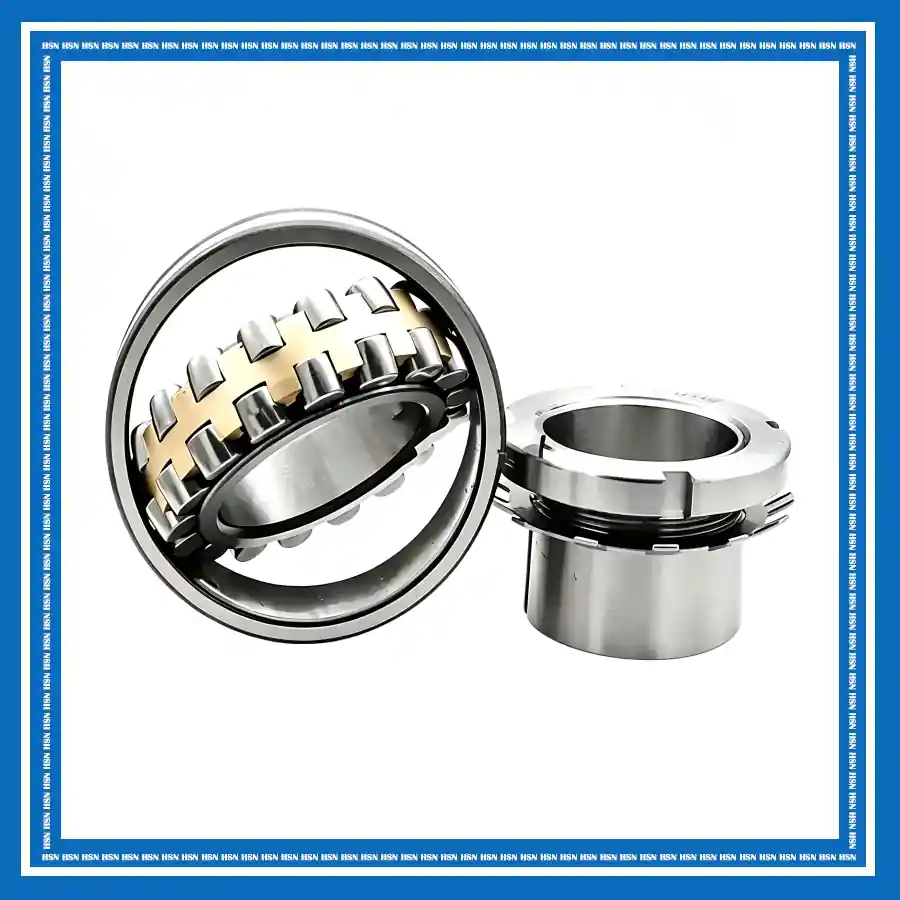

The 23028-E1A-XL-K-M+H3028 FAG spherical roller bearing consists of an inner ring, outer ring, two rows of spherical rollers, a brass cage, and an adapter sleeve. Its self-aligning design accommodates angular misalignment and shaft deflection while supporting high radial loads and axial loads in both directions. The E1A design has no central rib, while X-life improves operating performance and service life. In addition, the K tapered bore has a 1:12 taper and works with the H3028 adapter sleeve, allowing secure mounting on cylindrical shafts.
The 23028-E1A-XL-K-M+H3028 bearing is suitable for mining and cement, steel and metallurgy, paper machinery, material handling, industrial transmissions, and heavy industrial equipment. Its high load capacity and self-aligning capability support demanding operating conditions, while the adapter sleeve provides a practical mounting solution for cylindrical shafts.
