2312-K-TVH-C3+H2312
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Description
Specifications
Availability: 100 PCS
Brand: HSN/ FAG/ OEM
Bearing Number: 2312-K-TVH-C3+H2312
Category: Self-aligning Ball Bearings
1

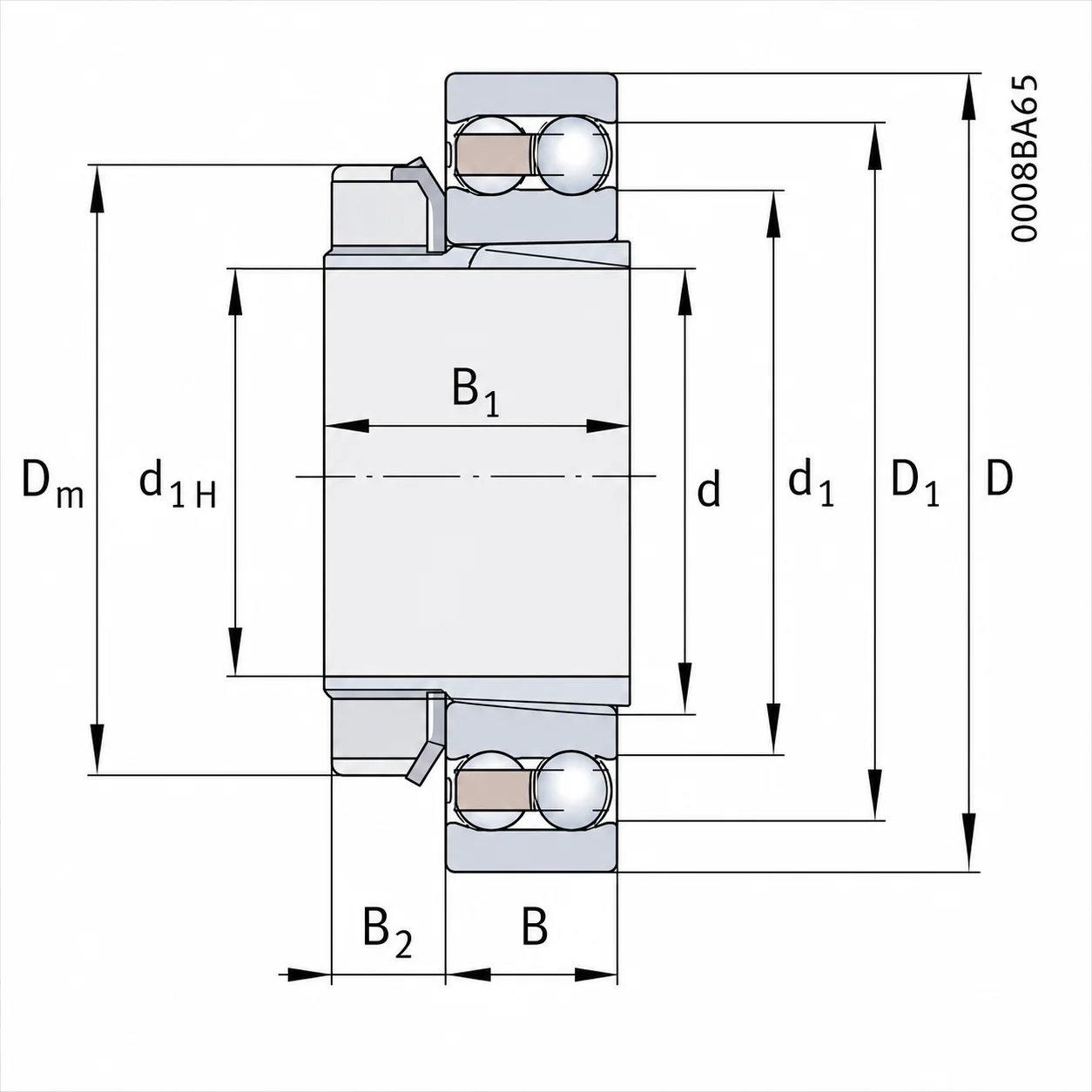

Weight and Dimensions
Bore (d): 60 mm
Outer (D): 130 mm
Width (B): 46 mm
Weight: 3.013 kg
Data from Schaeffler (medias)
Basic Dynamic Load Rating, Radial Cr: 89000 N
Basic Static Load Rating, Radial (C0r): 28000 N
Fatigue Load Limit, Radial (Cur): 1740 N
Limiting Speed (nG): 5200 rpm
Reference Speed (nϑr): 6700 rpm
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
FAG Self-aligning Ball Bearings
Product Description
The 2312-K-TVH-C3+H2312 FAG self-aligning ball bearing consists of a spherical outer raceway, tapered-bore inner ring, two rows of balls, a PA66 solid cage, and an adapter sleeve. The self-aligning design compensates for shaft deflection and misalignment, while C3 clearance supports reliable operation. The adapter sleeve also provides convenient mounting on cylindrical shafts.
The 2312-K-TVH-C3+H2312 bearing is widely used in textile machinery, industrial fans, conveying systems, and general transmission equipment. It is suitable for applications requiring self-alignment, smooth operation, and flexible shaft mounting.
