23128-E1A-XL-M
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Need a Professional Bearing Replacement Solution?
Our technical team is ready to recommend the right replacement or custom bearing solution for your application.
Specifications
Availability: 100 PCS
Brand: HSN/ FAG/ OEM
Bearing Number: 23128-E1A-XL-M
Category: Spherical Roller Bearings
1
Weight and Dimensions
Bore (d): 140 mm
Outer (D): 225 mm
Width (B): 68 mm
Weight: 10.4 kg
Data from Schaeffler (medias)
Basic Dynamic Load Rating, Radial Cr: 760 KN
Basic Static Load Rating, Radial (C0r): 1010 KN
Fatigue Load Limit, Radial (Cur): 87000 N
Limiting Speed (nG): 3000 r/min
Reference Speed (nϑr): 1930 r/min
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
FAG Spherical Roller Bearings Guide
Product Description

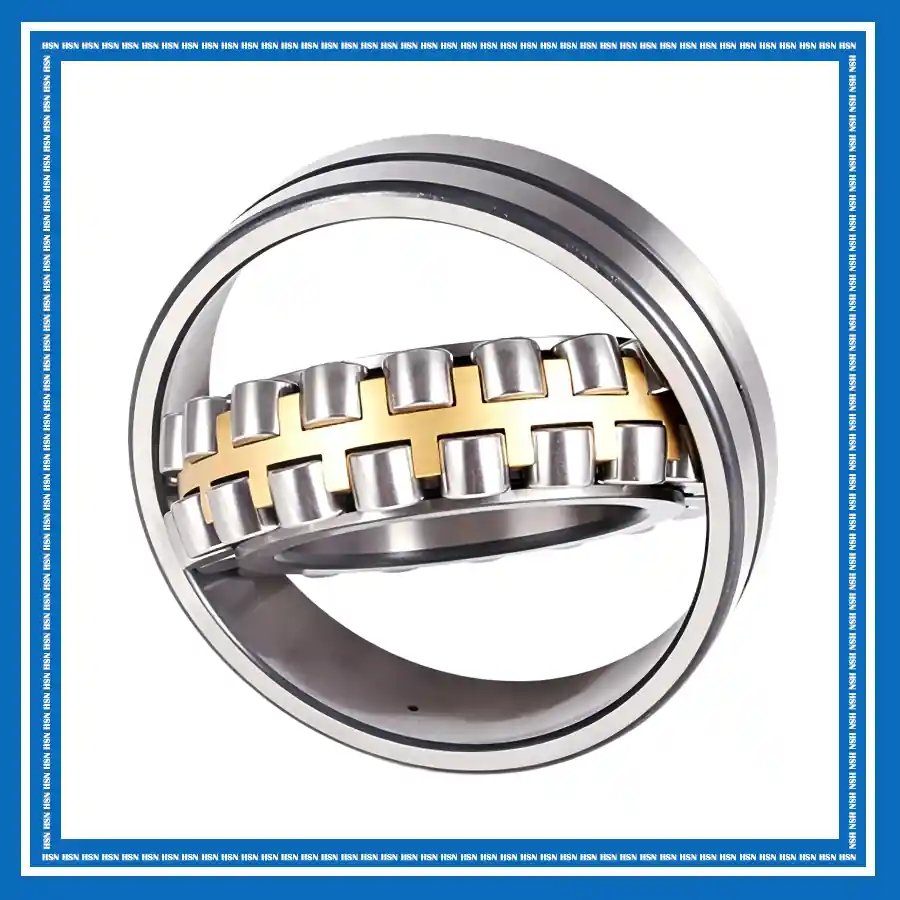

The 23128-E1A-XL-M FAG spherical roller bearing consists of an inner ring, outer ring, two rows of symmetrical spherical rollers, and a solid brass cage. Its self-aligning design compensates for angular misalignment and shaft deflection while supporting high radial loads and axial loads in both directions. The E1A increased-capacity design supports higher load carrying performance, while X-life improves operating performance and service life. In addition, the M solid brass cage is roller-guided, providing high rigidity and durability under demanding operating conditions.
The 23128-E1A-XL-M bearing is suitable for paper machinery, steel and metallurgy, mining and cement, material handling, industrial transmissions, and heavy industrial equipment. Its high load capacity, self-aligning capability, and robust brass cage make it suitable for applications exposed to heavy loads, vibration, shaft deflection, and alignment deviations.
