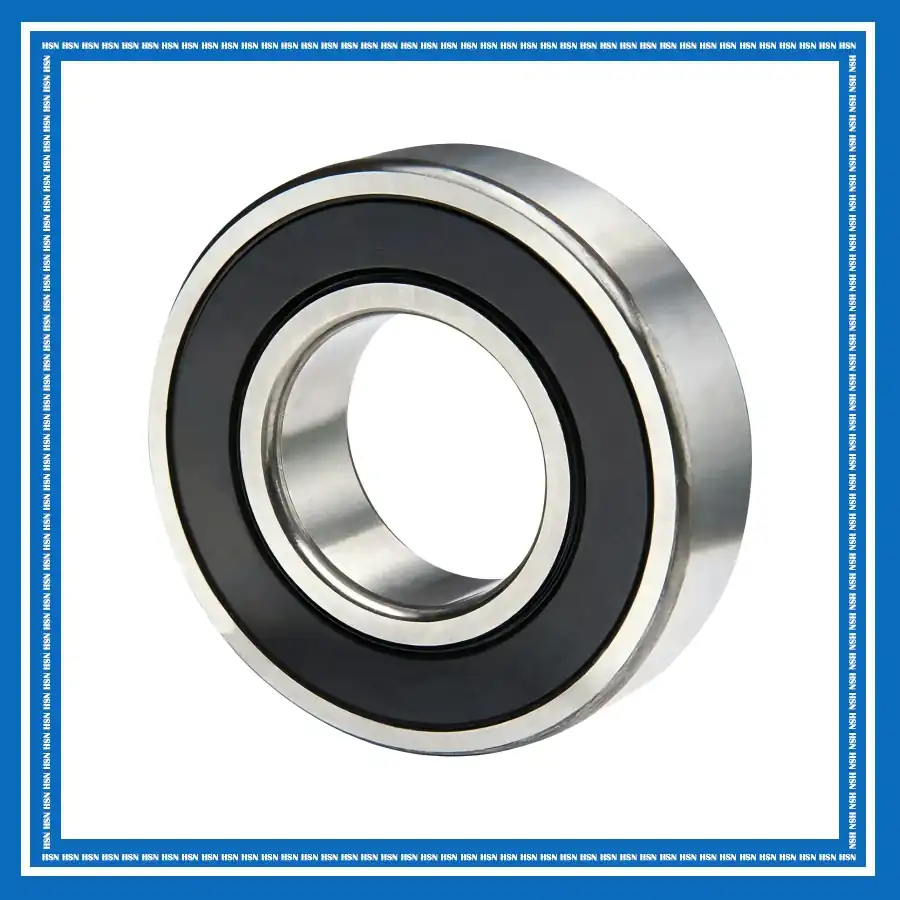

23156-BE-XL-2RSR

Specifications

Availability: 100 PCS

Brand: HSN/ FAG/ OEM

Bearing Number: 23156-BE-XL-2RSR

Category: Spherical Roller Bearings

1

Weight and Dimensions

Bore (d): 280 mm

Outer (D): 460 mm

Width (B): 146 mm

Weight: 96.3 kg

Data from Schaeffler (medias)

Basic Dynamic Load Rating, Radial C_r: 2750 KN

Basic Static Load Rating, Radial (C_0r): 4200 KN

Fatigue Load Limit, Radial (C_ur): 315000 N

Limiting Speed (n_G): 355 r/min

Product Properties

Precision: P0, P6, P5

Hardness: HRC58-62

Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.

Cage Material: Brass, Steel

Certificate: ISO9001:2015

1

Downloads & Links

FAG Spherical Roller Bearings Guide

Product Description

The 23156-BE-XL-2RSR FAG spherical roller bearing consists of an inner ring, outer ring, two rows of spherical rollers, cages, and seals on both sides. Its self-aligning design accommodates angular misalignment and shaft deflection while supporting high radial loads and axial loads in both directions. The BE design provides high load carrying capacity, while X-life improves operating performance and service life. In addition, the 2RSR seals on both sides help retain lubricant and prevent contaminants from entering the bearing, improving protection in dusty and dirty operating environments.

The 23156-BE-XL-2RSR bearing is suitable for mining and cement, material handling, steel and metallurgy, paper machinery, construction machinery, and industrial transmissions. Its high load capacity and self-aligning capability support heavy loads, shaft deflection, and alignment deviations. Meanwhile, the sealed design helps reduce lubricant loss and contamination, making it suitable for applications requiring effective sealing protection and reduced maintenance.
