Specifications
Availability: 100 PCS
Brand: HSN/ TIMKEN/ OEM
Bearing Number: 23296 YMB
Category: Spherical Roller Bearings
1

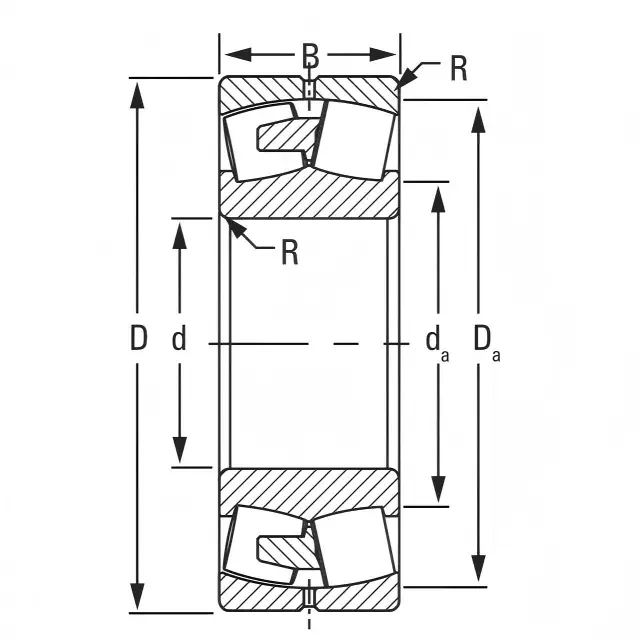

Weight and Dimensions
Bore (d): 480 mm 18.8976 in
Outer (D): 870 mm 34.2520 in
Width (B): 310 mm 12.2047 in
Weight: 821.2 kg
Data from Timken (medias)
Dynamic Radial Load Rating (C) : 9860 KN
Static Radial Load Rating (C0): 16400 KN
Thermal Reference Speed – Oil: 280 RPM
Thermal Reference Speed – Grease: 260 RPM
Limiting Speed: 680 RPM
e Factor: 0.35
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
Timken Spherical Roller Bearings Guide
Product Description
The 23296 YMB Timken spherical roller bearing consists of an inner ring, an outer ring, two rows of spherical rollers, and a one-piece, inner-ring-piloted, machined-brass cage. This configuration provides high radial load capacity, bidirectional axial load support, and self-aligning capability to accommodate shaft deflection and misalignment. The high-performance machined-brass cage guided by the inner ring provides excellent strength, wear resistance, and reliable roller guidance, helping maintain stable operation under heavy loads, shock conditions, and demanding operating environments.
The 23296 YMB bearing is widely used in mining equipment, crushers, conveyors, industrial gearboxes, rolling mills, and heavy-duty machinery. It is particularly suitable for applications requiring high load capacity, misalignment compensation, reliable roller control, and long service life under continuous or severe operating conditions.
