29492EM
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ TIMKEN/ OEM
Bearing Number: 29492EM
Category: Spherical Roller Thrust Bearings
1
Weight and Dimensions
Bore (d): 460 mm 18.1102 in
Outer (D): 800 mm 31.4961 in
Width (B): 206 mm 8.1102 in
Cone Outside Diameter (d1): 735 mm 28.9370 in
Cup Bore (D1): 596 mm 23.4646 in
Weight: 396.5 kg
Data from Timken (medias)
Dynamic Radial Load Rating (Ca) : 8120 KN
Static Radial Load Rating (Ca0): 31700 KN
Reference Speed Rating: 380 RPM
Limiting Speed Rating: 760 RPM
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
Timken Spherical Roller Thrust Bearings
Product Description

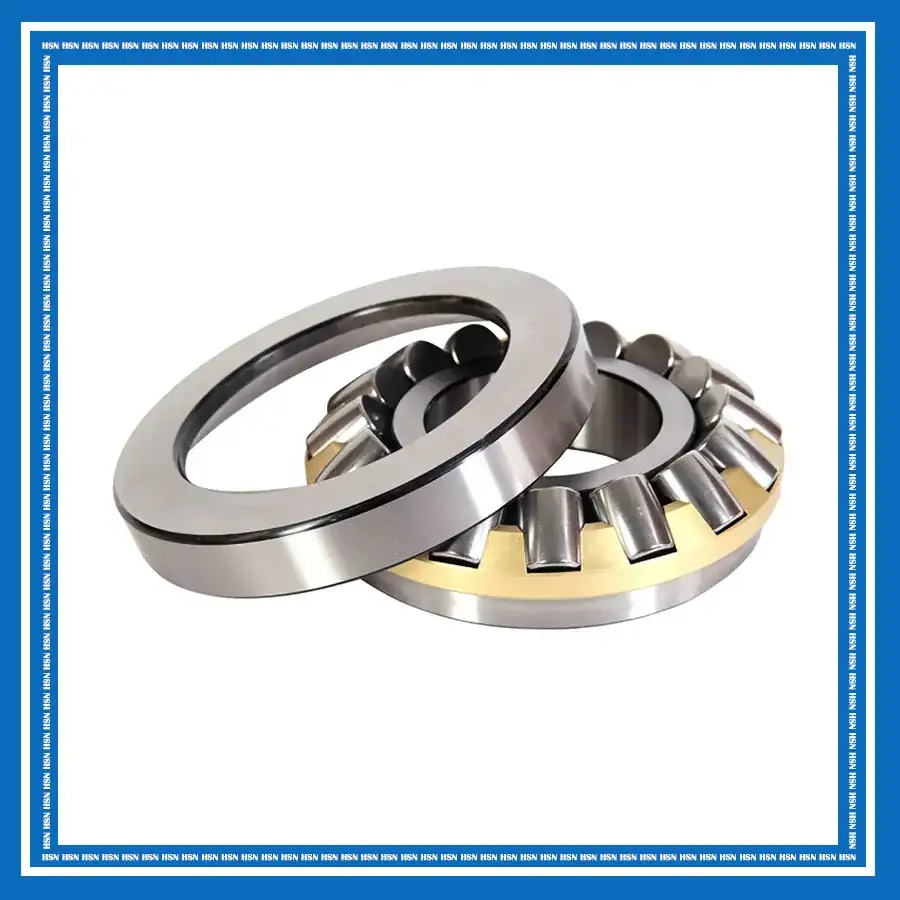

The 29492EM Timken spherical roller thrust bearing consists of a shaft washer, a housing washer, asymmetrical spherical rollers, and a cage. The spherical raceway design provides high axial load capacity while also accommodating radial loads. Its self-aligning capability compensates for shaft deflection and misalignment, helping maintain reliable performance under heavy loads, shock loads, and demanding operating conditions.
The 29492EM bearing is widely used in gear drives, pumps, crushers, extruders, rolling mills, mining equipment, and other heavy industrial machinery. It is particularly suitable for applications requiring high axial load capacity, misalignment compensation, shock resistance, and reliable operation under continuous or severe working conditions.
