3006-B-2RZ-TVH
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ FAG/ OEM
Bearing Number: 3006-B-2RZ-TVH
Category: Angular Contact Ball Bearings
1
Weight and Dimensions
Bore (d): 30 mm
Outer (D): 55 mm
Width (B): 19 mm
Weight: 0.16 kg
Data from Schaeffler (medias)
Basic Dynamic Load Rating, Radial Cr: 19900 N
Basic Static Load Rating, Radial (C0r): 15400 N
Fatigue Load Limit, Radial (Cur): 780 N
Limiting Speed (nG): 10100 rpm
Reference Speed (nϑr): 10100 rpm
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
FAG Angular Contact Ball Bearings
Product Description

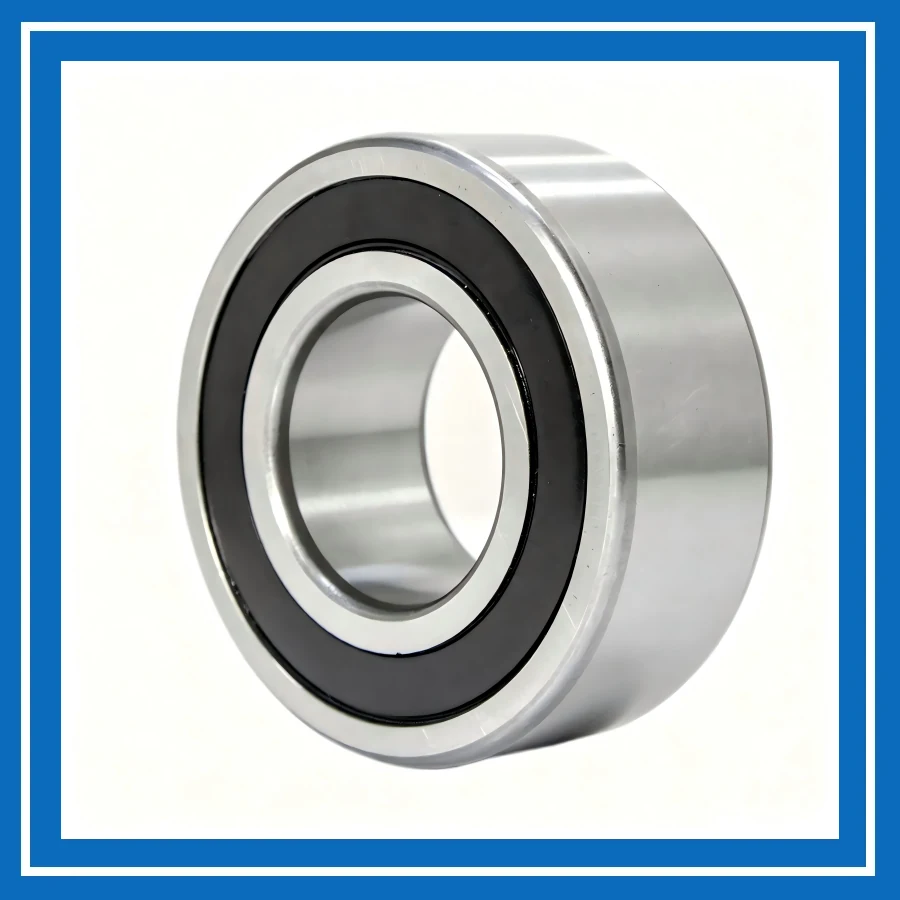

The 3006-B-2RZ-TVH FAG double row angular contact ball bearing consists of an inner ring, an outer ring, two rows of balls, a solid cage made from glass-fiber reinforced polyamide PA66, and non-contact rubberized gap seals on both sides. The double-row design supports high radial loads and axial loads in both directions while also accommodating tilting moments. The 2RZ seals help protect against contamination and retain lubricant with low friction, while the lightweight TVH cage provides reliable ball guidance and smooth operation.
The 3006-B-2RZ-TVH bearing is widely used in conveying equipment, packaging machinery, elevators, agricultural machinery, and industrial handling systems. It is particularly suitable for applications requiring combined load capacity, bidirectional axial support, low-friction sealing, and reliable continuous operation. These are among the application areas identified by FAG for double row angular contact ball bearings.
