3308-DA-MA
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ FAG/ OEM
Bearing Number: 3308-DA-MA
Category: Angular Contact Ball Bearings
1
Weight and Dimensions
Bore (d): 40 mm
Outer (D): 90 mm
Width (B): 36,5 mm
Weight: 1.2 kg
Data from Schaeffler (medias)
Basic Dynamic Load Rating, Radial Cr: 62000 N
Basic Static Load Rating, Radial (C0r): 52000 N
Fatigue Load Limit, Radial (Cur): 3250 N
Limiting Speed (nG): 10700 rpm
Reference Speed (nϑr): 6000 rpm
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
FAG Angular Contact Ball Bearings
Product Description

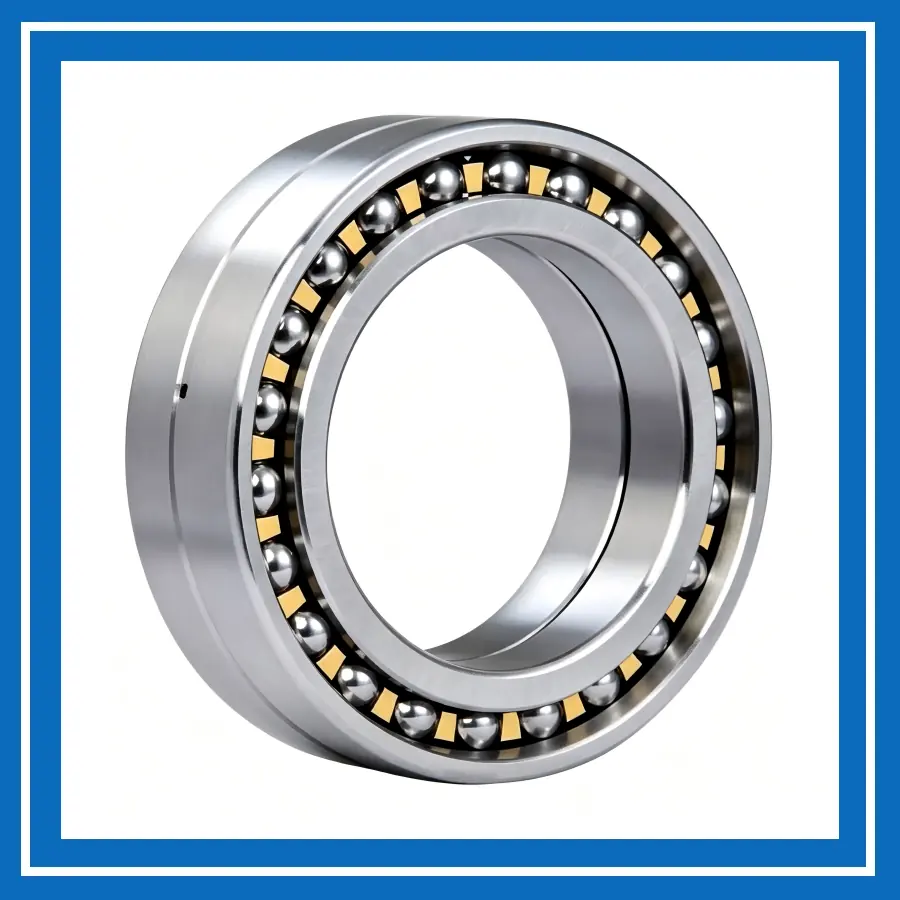

The 3308-DA-MA FAG double row angular contact ball bearing consists of an outer ring, a split inner ring, two rows of balls, and a solid brass cage guided on the outer ring. The 45° contact angle provides high axial load capacity in both directions while also supporting radial loads. The split inner ring design is particularly suitable for high alternating axial loads, while the robust MA brass cage provides reliable ball guidance and stable operation under demanding conditions.
The 3308-DA-MA bearing is widely used in industrial gearboxes, rolling mill equipment, heavy-duty transmissions, process machinery, and other industrial drive systems. It is particularly suitable for applications requiring high bidirectional axial load capacity, rigid axial guidance, and reliable operation under alternating axial loads.
