A5219
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ ARB/ OEM
Bearing Number: A5219
Category: Cylindrical Roller Bearings
1

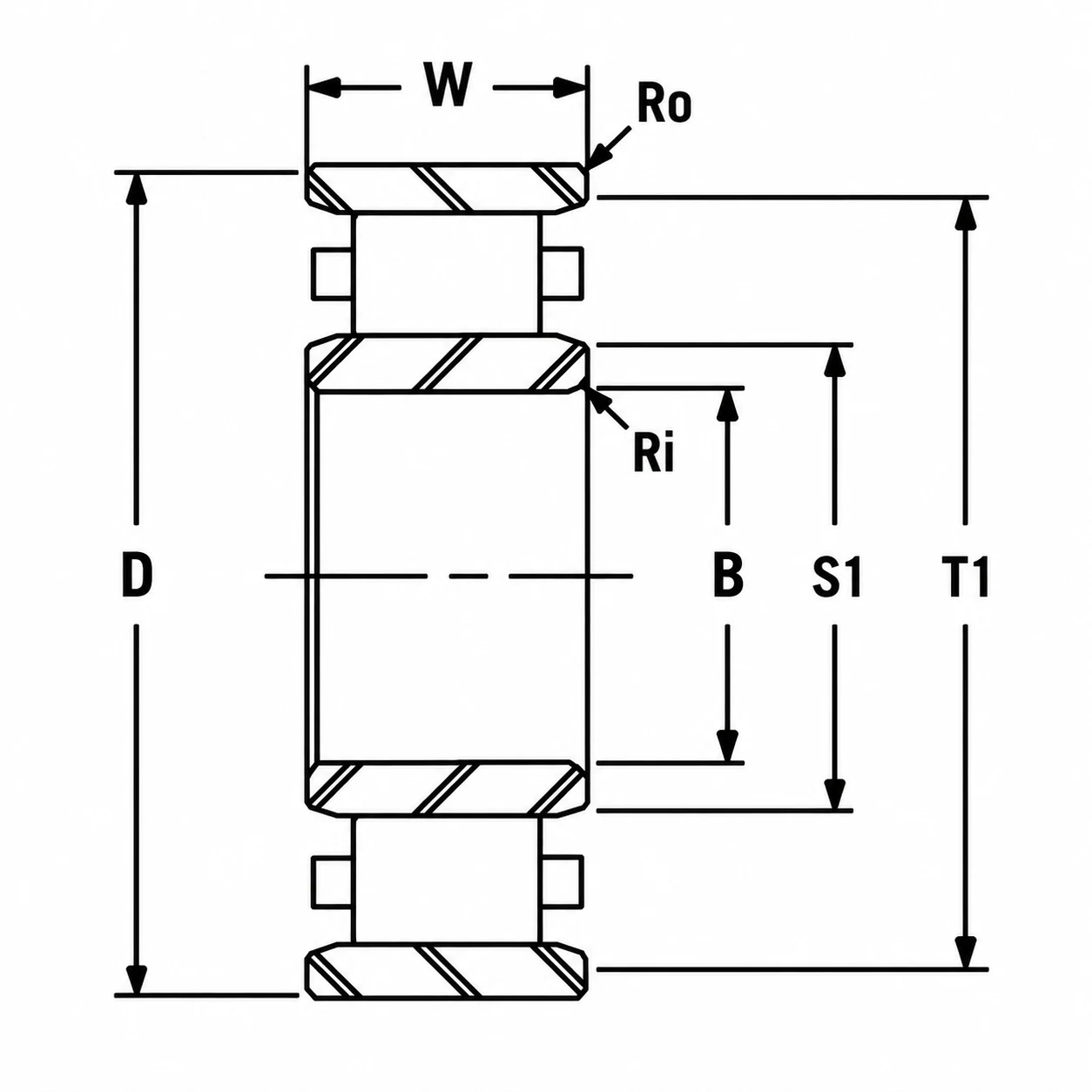

Weight and Dimensions
Bore (B): 95 mm 3.7402 in
Outer Diameter (D): 170 mm 6.6929 in
Width (W): 55.6 mm 2.1875 in
Inner Race O.D. A: 113.51 mm 4.469 in
Weight: 3 kg 7 lbs
Data from ARB (medias)
Dynamic Capacity (C) : 167 KN 37500 lbs
Static Capacity (Co) : 196 KN 44000 lbs
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
ARB Cylindrical Roller Bearings Guide
Product Description
The American Roller Bearing A5219 cylindrical roller bearing consists of a ribless inner ring, ribless outer ring, and cylindrical roller assembly that is separable from both rings. Its cylindrical roller design provides high radial load capacity and rigidity, while the ribless ring configuration allows axial displacement to accommodate shaft expansion during operation. The fully separable construction facilitates mounting, inspection, and maintenance. It is suitable for industrial gearboxes, electric motors, conveyors, material handling equipment, steel mill machinery, paper machinery, and other industrial equipment requiring reliable radial support and axial displacement capability.
