A5248
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ ARB/ OEM
Bearing Number: A5248
Category: Cylindrical Roller Bearings
1

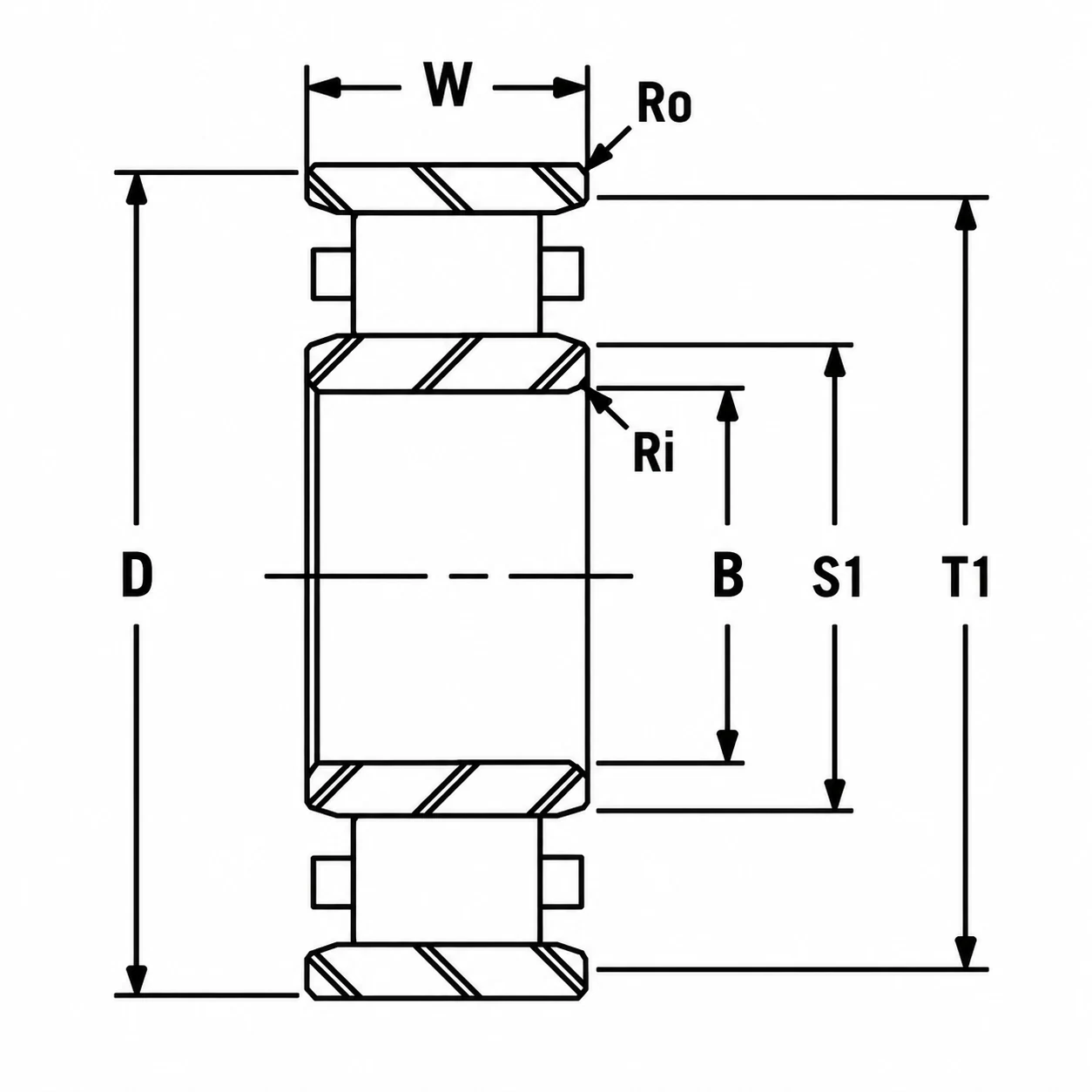

Weight and Dimensions
Bore (B): 240 mm 9.4488 in
Outer Diameter (D): 440 mm 17.3228 in
Width (W): 146.1 mm 5.75 in
Inner Race O.D. A: 291.19 mm 11.464 in
Weight: 104.5 kg 231 lbs
Data from ARB (medias)
Dynamic Capacity (C) : 2180 KN 490000 lbs
Static Capacity (Co) : 3692 KN 830000 lbs
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
ARB Cylindrical Roller Bearing Guide
Product Description
The American Roller Bearing A5248 cylindrical roller bearing consists of a ribless inner ring, a ribless outer ring, and a cylindrical roller assembly separable from both rings. Its cylindrical roller design provides high radial load capacity and rigidity, while the ribless ring configuration allows axial displacement to accommodate shaft thermal expansion during operation. The fully separable construction facilitates mounting, inspection, and maintenance while ensuring reliable performance under demanding radial loads. It is suitable for demanding applications in the United States industrial market, including industrial gearboxes, electric motors, steel mill machinery, conveyors, paper machinery, and material handling systems requiring reliable radial support and axial displacement capability.
